Home page Power and PoE PoE Injectors MaxLink PI120 PoE injector - 802.3af/at/bt, 55V, 2.2A, 120W, 1Gbit

Sorry but the product is no longer in our offer.

MaxLink PI120 PoE injector - 802.3af/at/bt, 55V, 2.2A, 120W, 1Gbit

0/0

MaxLink PI120 PoE injector - 802.3af/at/bt, 55V, 2.2A, 120W, 1Gbit

MAXPI120

MaxLink PI120 is a high-quality Gigabit POE injector with one POE output port for powering 802.3af/at/bt devices with maximum power consumption up to 120W . For better distribution of the current load, all 4 pairs of conductors are powered. Can also be installed in outdoor cabinets due to the wide ... More information

To select 9 variants

All variants(compare all)

120WMAXPI120currently displayed productMaxLink PI120 is a high-quality Gigabit POE injector with one POE output port for powering 802.3af/at/bt devices with maximum power consumption up to 120W . For better distribution of the current loa...

15WMAXPI15MaxLink PI15 is Gigabit PoE injector with very good quality and one output POE port for powering devices supporting 802.3af with maximum power consumption up to 15,4W. The power supply is guided over...

15W (socket)MAXPI15SMaxLink PI15S is high quality Gbit POE injector with 1 POE Out eth port for devices which support 802.3af. It provides 15,4W. Plug injector directly to socket. Powering through 4,5(+) and 7,8(-). It ...

15W (white)MAXPI15WMaxLink PI15W is a high quality Gigabit POE injector with PoE output port for powering 802.3af-enabled devices with a maximum power consumption of up to 15.4W. The power supply is conducted on wires ...

24WMAXPI15FEMaxLink MAXPI15FE is a very simple 100Mbps PoE injector with one output POE port to power devices with 802.3af support with maximum consumption up to 24W, output voltage 48V and current 0.5A. The max...

30WMAXPI30MaxLink PI30 is Gigabit PoE injector with very good quality and one output POE port for powering devices supporting 802.3af/at with maximum power consumption up to 30W. The power supply is guided ove...

30W (white)MAXPI30WMaxLink PI30 is Gigabit PoE injector of white color with very good quality and one output POE port for powering devices supporting 802.3af/at with maximum power consumption up to 30W. The power suppl...

60WMAXPI60v2MaxLink PI60 is a high quality Gigabit POE injector with one POE output port for powering 802.3af/at/bt devices with maximum power consumption up to 60W. For better current load distribution, all 4 p...

90WMAXPI90MaxLink PI90 is a high-quality Gigabit POE injector with one POE output port for powering 802.3af/at/bt devices with maximum power consumption up to 95W. For better distribution of the current load, ...

compare send a question

Send a question

E-mail

Text

Send

Download1

Product description

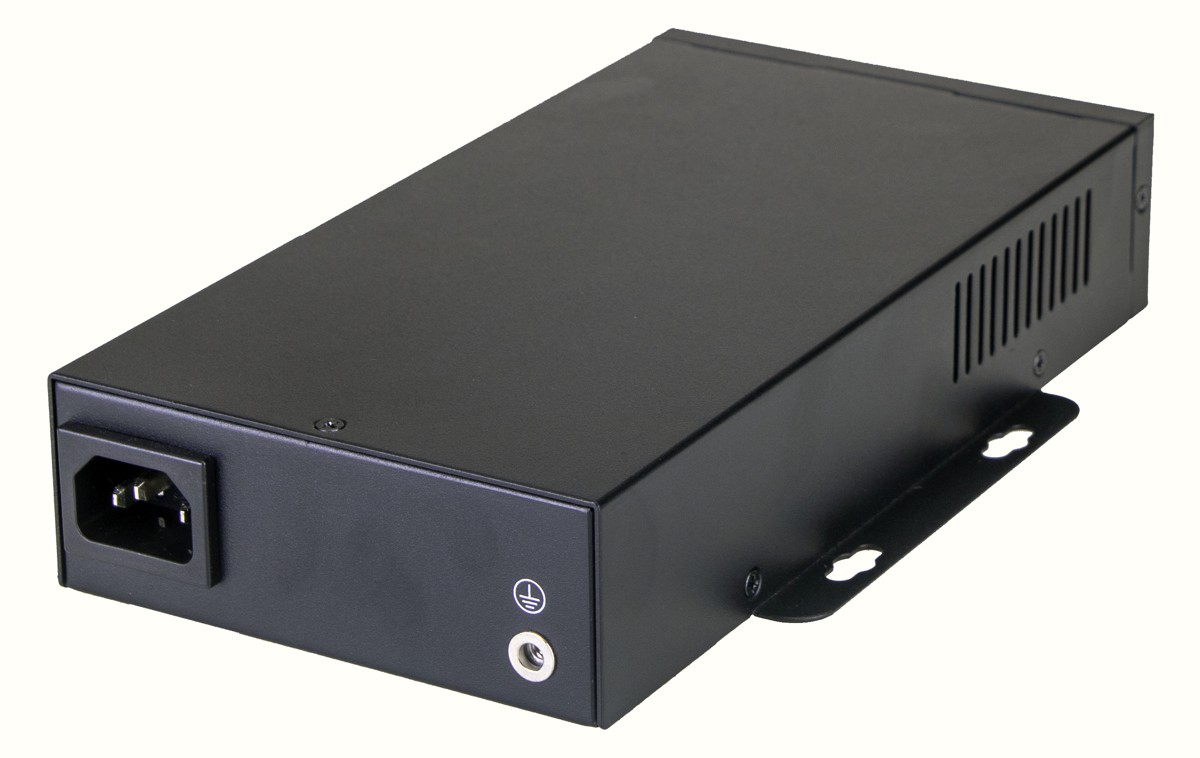

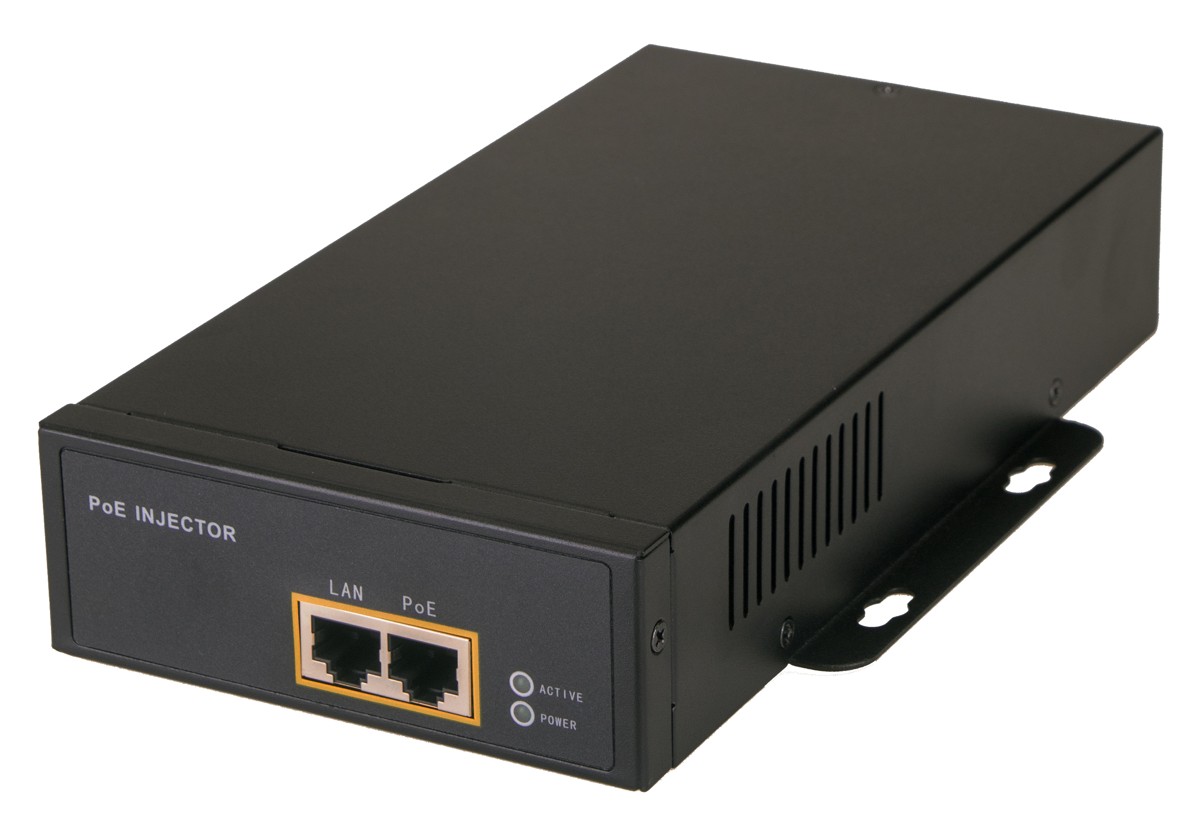

MaxLink PI120 is a high-quality Gigabit POE injector with one POE output port for powering 802.3af/at/bt devices with maximum power consumption up to 120W . For better distribution of the current load, all 4 pairs of conductors are powered. Can also be installed in outdoor cabinets due to the wide temperature working range.

The power cord is included.

Specifications

Connectors and Interfaces

Ethernet speed [Mb/s]:10/100/1000

Gigabit LAN:Yes

Power

Pin powering:1,2,7,8 (-), 3,4,5,6 (+)

Output Power / 1port [W]:120

PoE-Out standards:802.3af, 802.3at, 802.3at - ultra PoE (60W), 802.3bt

PoE Out ports:1

Output Voltage [V]:55

Physical characteristics

LED indication:Yes

Operating temperature [°C]:-20 up to 70

Weight [g]:1070

Height [mm]:41

Width [mm]:134

Depth [mm]:214

Download

Datasheet
