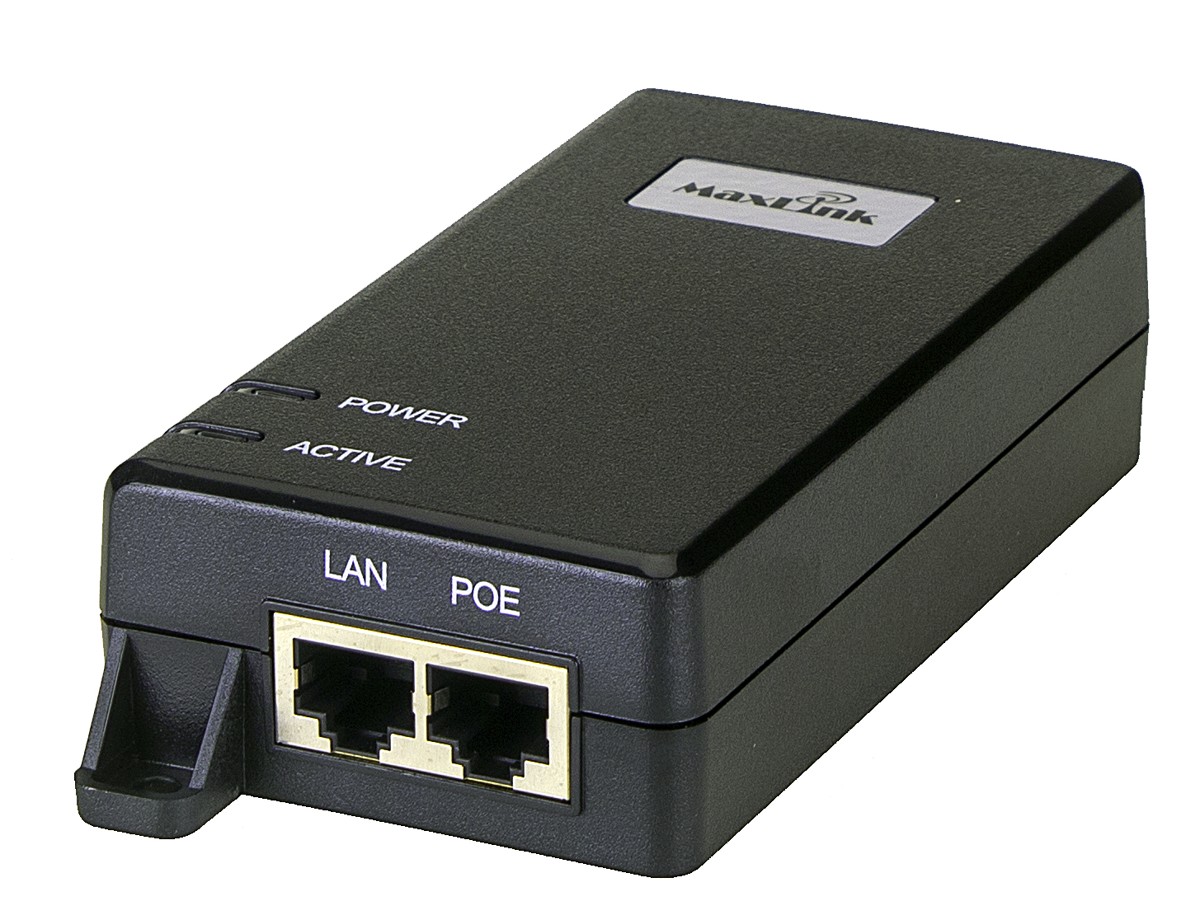

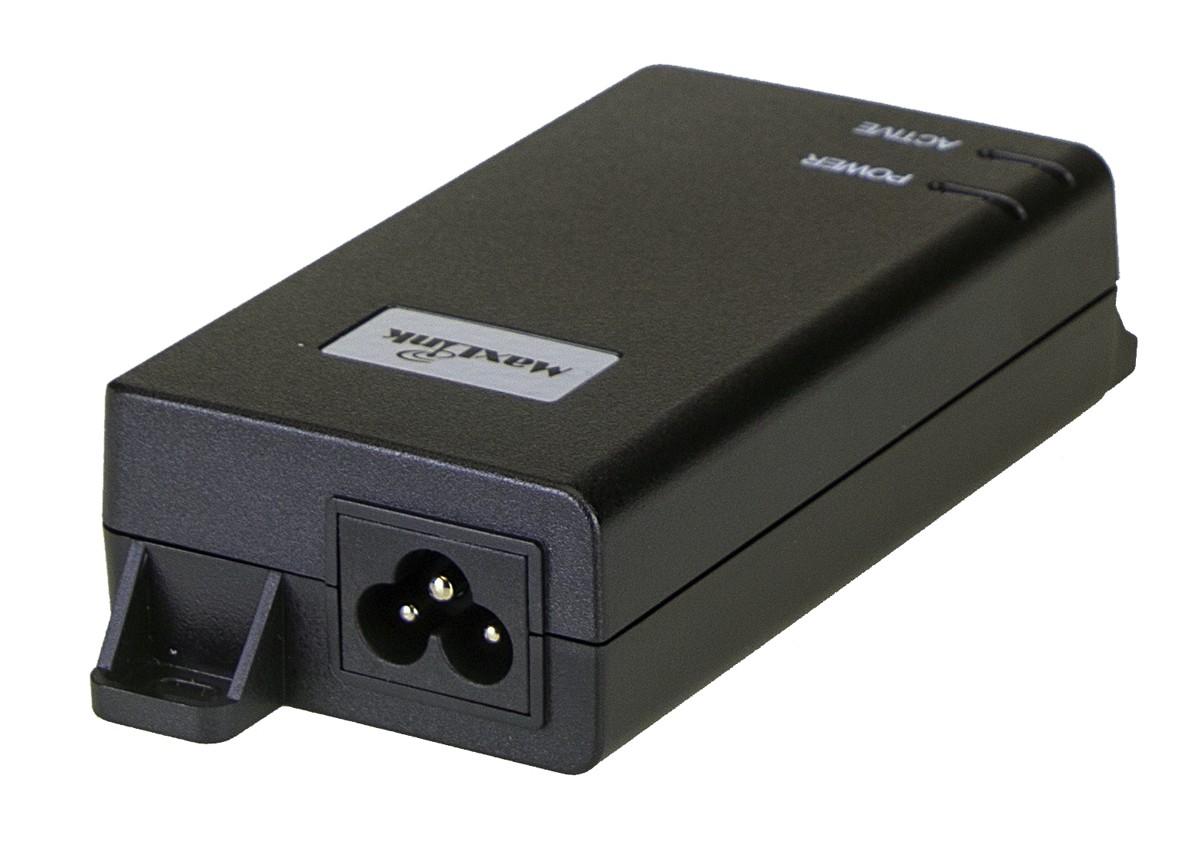

MaxLink PI30 PoE injector - 802.3af/at, 55V, 550mA, 30W, 1Gbit

MAXPI30
MaxLink PI30 is Gigabit PoE injector with very good quality and one output POE port for powering devices supporting 802.3af/at with maximum power consumption up to 30W. The power supply is guided over 4,5 (+) and 7,8 (-) wires. PoE injector is suitable for IP cammeras, VoIP phones, access points an... More information
To select 7 variants

Product description

MaxLink PI30 is Gigabit PoE injector with very good quality and one output POE port for powering devices supporting 802.3af/at with maximum power consumption up to 30W. The power supply is guided over 4,5 (+) and 7,8 (-) wires. PoE injector is suitable for IP cammeras, VoIP phones, access points and other devices supporting 802.3af/at.

The package includes a power cord.

Specifications

Connectors and Interfaces

Ethernet speed [Mb/s]:10/100/1000
Gigabit LAN:Yes

Power

Pin powering:4,5 (+), 7,8 (-)
Output Power / 1port [W]:30
PoE-Out standards:802.3af, 802.3at
PoE Out ports:1
Output Voltage [V]:55

Physical characteristics

LED indication:Yes
Operating temperature [°C]:-5 up to 45
Weight [g]:200
Height [mm]:33
Width [mm]:63
Depth [mm]:140

Download

DatasheetCE
