MaxLink PI15FE PoE injector - 802.3af, 24W, 10/100Mbps

MAXPI15FE
MaxLink MAXPI15FE is a very simple 100Mbps PoE injector with one output POE port to power devices with 802.3af support with maximum consumption up to 24W, output voltage 48V and current 0.5A. The maximum stated power of 24W is a compromise between the 802.3af (15.4W/port) and 802.3at (30W/port) sta... More information
To select 8 variants

Product description

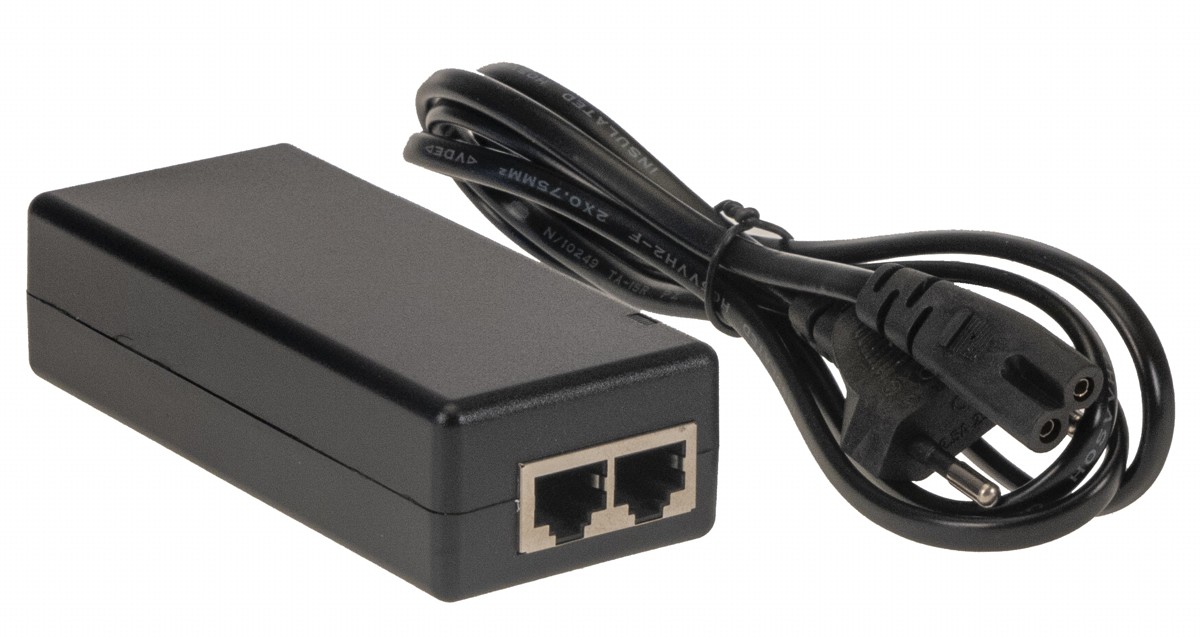

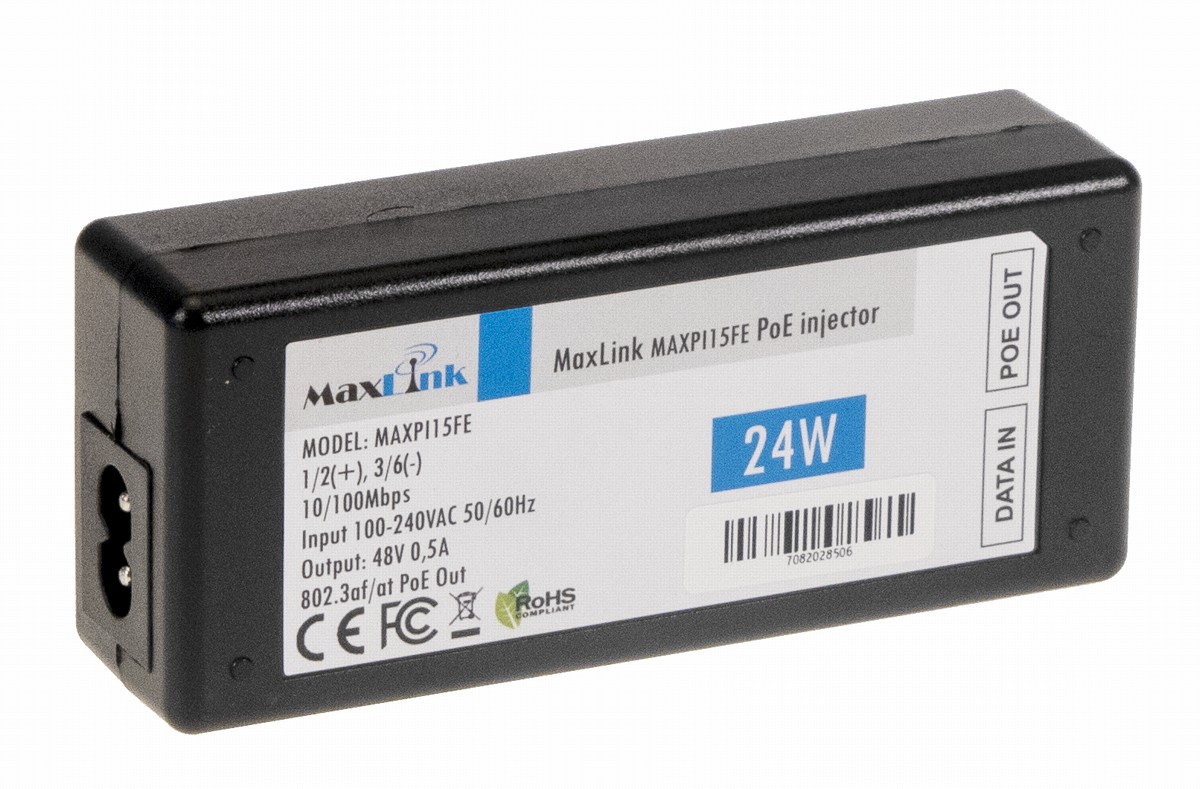

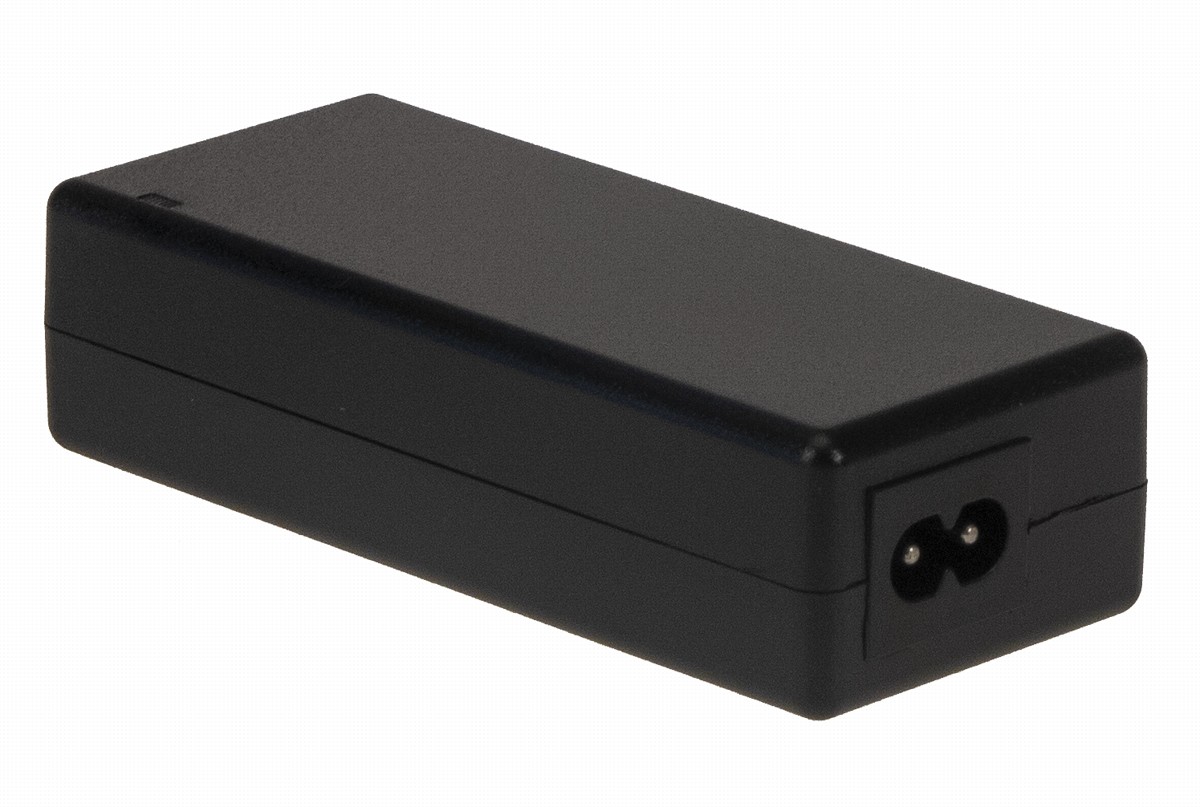

MaxLink MAXPI15FE is a very simple 100Mbps PoE injector with one output POE port to power devices with 802.3af support with maximum consumption up to 24W, output voltage 48V and current 0.5A. The maximum stated power of 24W is a compromise between the 802.3af (15.4W/port) and 802.3at (30W/port) standards, which is optimal for devices with a maximum consumption of around 18-20W. Power is supplied via wires 1.2 (+) and 3.6 (-), and the power injector is particularly suitable for powering IP cameras, VoIP phones, etc. A 2-pin power cable is also included in the package.

Specifications

Connectors and Interfaces

Ethernet speed [Mb/s]:10/100

Power

Pin powering:1,2 (+), 3,6 (-)
Output Power / 1port [W]:24
PoE-Out standards:802.3af
PoE Out ports:1
Output Voltage [V]:48

Physical characteristics

LED indication:Yes
Operating temperature [°C]:0 up to 40
Height [mm]:29
Width [mm]:44
Depth [mm]:114
