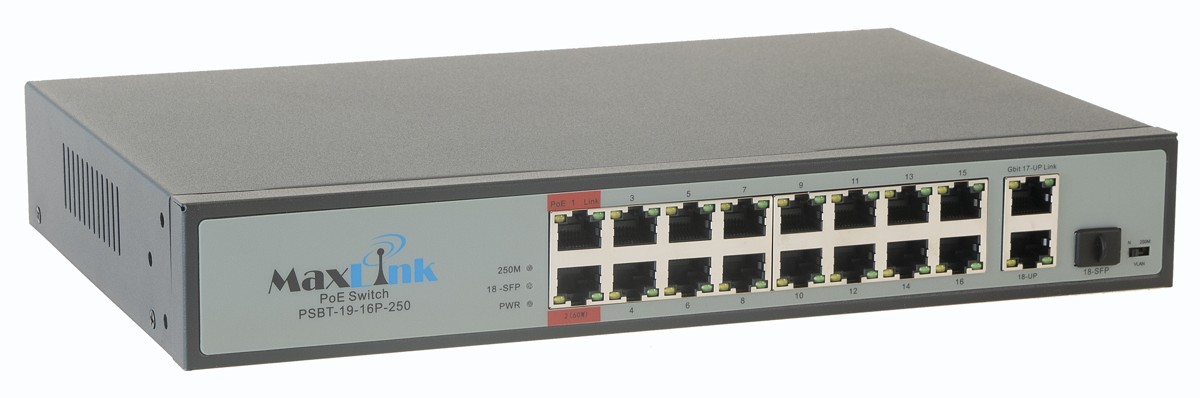

PSBT-19-16P-250 is a 16 port 10/100Mbps PoE switch without management with two additional Gigabit LAN ports, which only one is a LAN/SFP combo. Automatically detects and powers devices supporting PoE standard 802.3af/at (max. 30 W/port) on ports 1 to 16, even on ports 1 and 2 supports PoE standard 802.3bt (60 W). Ports 17 and 18 serve as uplinks and do not support PoE. The total budget for powering the connected devices is 200 W using the internal power supply. The switch automatically balances the power for individual ports according to the consumption of the device. The Switch can be mounted in a 19" rack thanks to the included accessories.
802.3bt support!
Port 1 and 2 also support the 802.3bt standard, where up to 60 W output power is available for the connected device! Also new are switches equipped with the Watchdog function. If the Ethernet link is not detected for about 1 minute and the power supply is active at the same time, the supply voltage will be interrupted and the connected device will be restarted.
Switch has a manual mode switch
- Normal "N": The switch supplies the device at a distance of max. 100 m. The throughput of the switch per port is 10/100 Mbps.
- VLAN: Ports are logically separated from each other, in this mode unwanted broadcast storms can be avoided. The switch powers devices up to 100 m and the throughput per port is 10/100 Mbps.
- 250 m: The switch powers devices up to 250 m with a reduced throughput of 10 Mbps per port.
Package contents
- Device
- Ears to 19" rack
- Power cord
