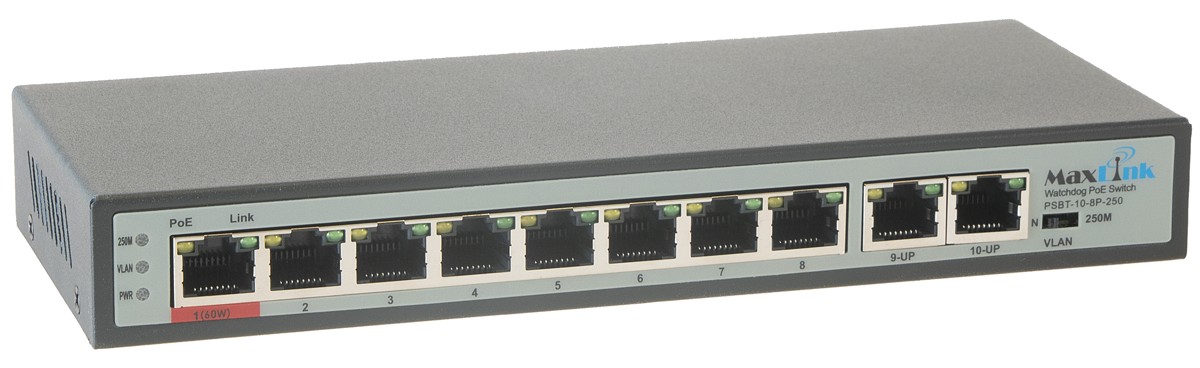

PSBT-10-8P-250 is a 10 port 10/100Mbps PoE switch without management. Automatically detects and powers devices supporting PoE standard 802.3af/at (max. 30 W port) on ports 1 to 8, on port 1 it even supports PoE standard 802.3bt (60 W). Ports 9 and 10 serve as uplinks and do not support PoE. The total budget for powering the connected devices is 120 W using the included external 52 V/2.5 A power adapter. The switch automatically balances the power for individual ports according to the consumption of the device. The switch can be fixed to the wall.
802.3bt support!
Port 1 additionally supports the 802.3bt standard, where an output power of up to 60 W is available for the connected device! The switches are also newly equipped Watchdog function. If the Ethernet link is not detected for about 1 minute and the power supply is active at the same time, the supply voltage will be interrupted and the connected device will be restarted.
Switch has a manual mode switch
- Normal "N": The switch powers the device at a distance of max. 100 m. The throughput of the switch per port is 10/100 Mbps.
- VLAN: Ports are logically separated from each other, in this mode unwanted broadcast storms can be avoided. The switch powers devices up to 100 m and the throughput per port is 10/100 Mbps.
- 250 m : The switch powers devices up to 250 m with a reduced throughput of 10 Mbps per port.
Package contents
- Device

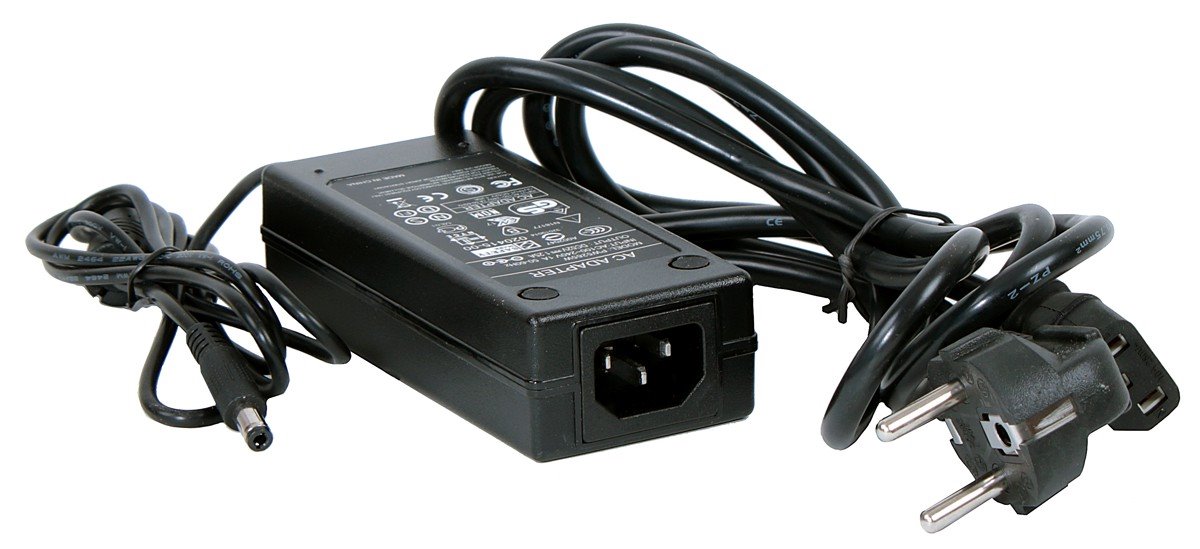

- Power adapter 52 V; 2.5 A
- Power cord
