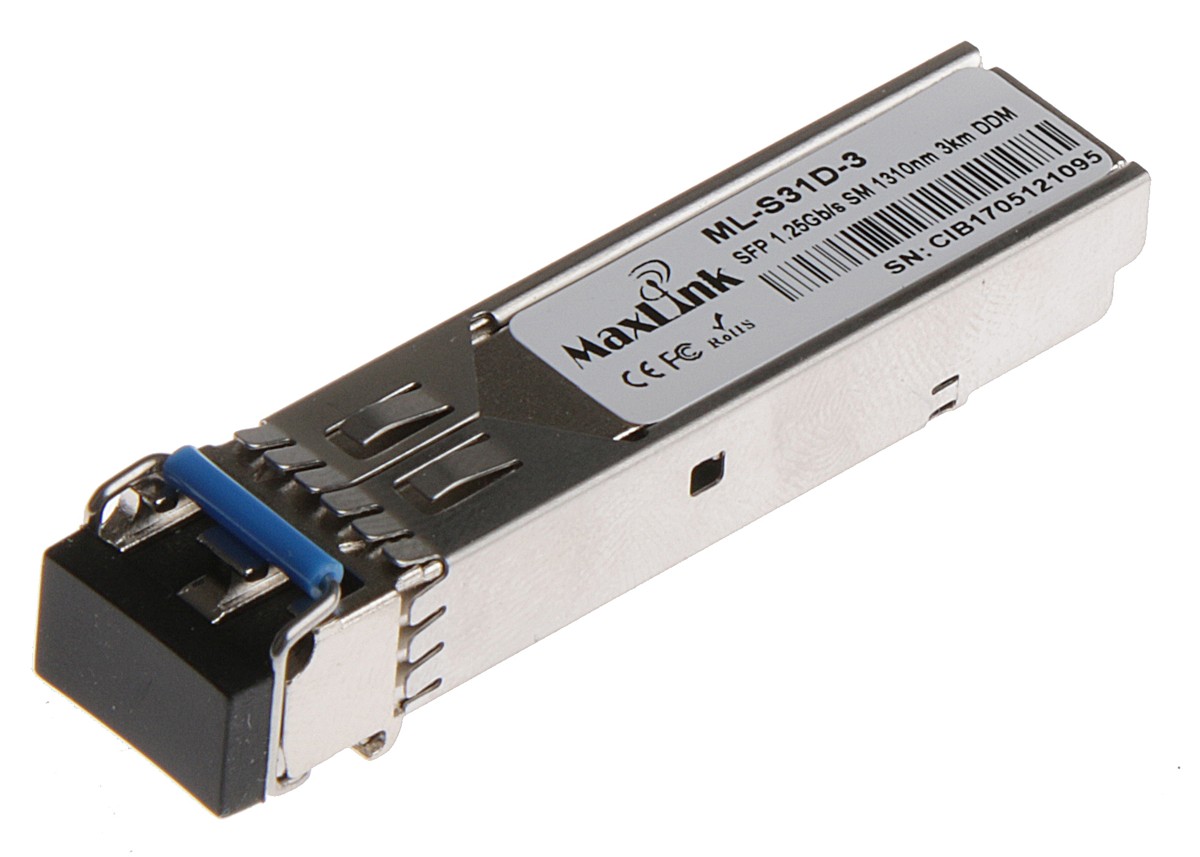

MaxLink 1.25G SFP optical module, SM, 1310nm, 3km, 2x LC connector, DDM

ML-S31D-3
ML-S31D-3 is 1.25G SFP module with wave length 1310nm, 2 LC connectors for maximal distance 3km with singlemode fiber. SFP module supports DDM - digital diagnostics monitoring.The LC connectors in the SFP module have UPC type grinding.Modules are compatible with all MikroTik products and with other... More information
To select 4 variants

Product description

ML-S31D-3 is 1.25G SFP module with wave length 1310nm, 2 LC connectors for maximal distance 3km with singlemode fiber. SFP module supports DDM - digital diagnostics monitoring.

The LC connectors in the SFP module have UPC type grinding.

Modules are compatible with all MikroTik products and with others marked as "Cisco compatible".

Specifications

Optics

Format:SFP
For cable type:Single Mode
Transmission speed:1 Gbps
Wavelength - Tx/Rx [nm]:1310
Distance [km]:3
Transfer type:2-fiber
Polishing type:UPC
Tx power [dBm]:-9 up to -3
Receiver sensitivity [dBm]:-24

Connectors and Interfaces

Optical Connectors:(2) LC

Physical characteristics

Operating temperature [°C]:0 up to 70

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
