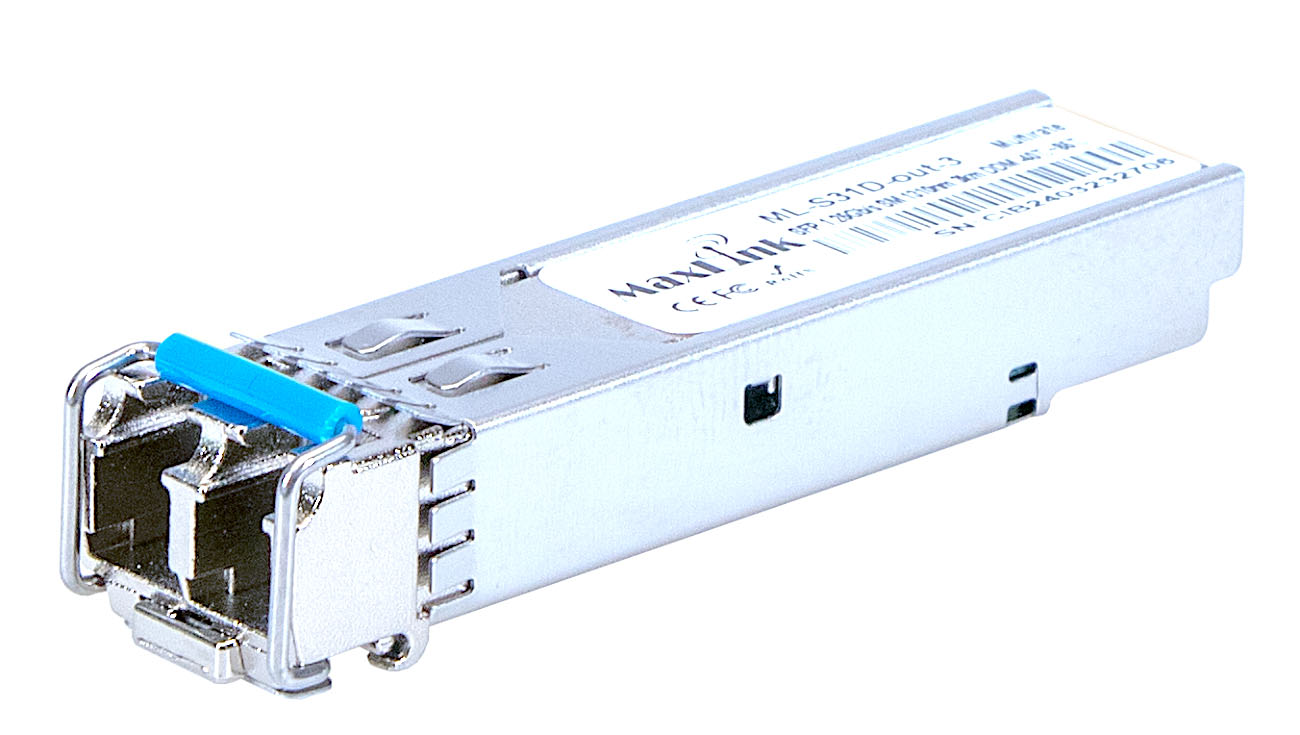

MaxLink 1.25G SFP optical module, industrial -40°C +85°C, SM, 1310nm, 3km, 2x LC connector, DDM

ML-S31D-out-3
ML-S31D-out-3 is 1.25G SFP module with wave length 1310nm, 2 LC connectors for maximal distance 3km with singlemode fiber. SFP module supports DDM - digital diagnostics monitoring. The Industrial version of the SFP module differs from the normal one with better components and a better operating tem... More information
To select 2 variants

Product description

ML-S31D-out-3 is 1.25G SFP module with wave length 1310nm, 2 LC connectors for maximal distance 3km with singlemode fiber. SFP module supports DDM - digital diagnostics monitoring. The Industrial version of the SFP module differs from the normal one with better components and a better operating temperature range from -40°C to +85°C.

The LC connectors in the SFP module have UPC type grinding.

Modules are compatible with all MikroTik products and with others marked as "Cisco compatible".

Specifications

Optics

Format:SFP
For cable type:Single Mode
Transmission speed:1 Gbps
Wavelength - Tx/Rx [nm]:1310
Distance [km]:3
Transfer type:2-fiber
Polishing type:UPC
Tx power [dBm]:-9 up to -3
Receiver sensitivity [dBm]:-24

Connectors and Interfaces

Optical Connectors:(2) LC

Physical characteristics

Operating temperature [°C]:-40 up to 85

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
