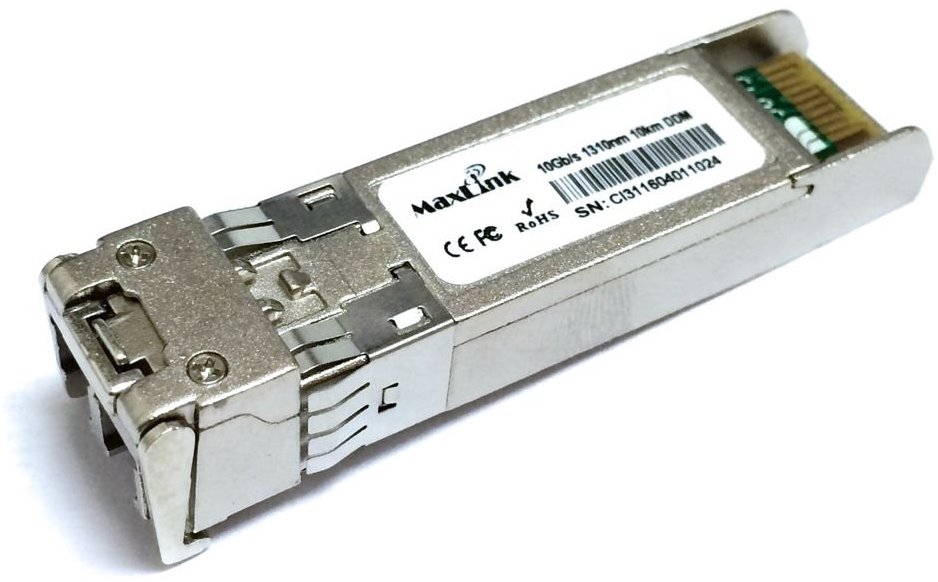

MaxLink 10G SFP+ optický modul, industrial -40°C + 85°C, SM, 1310nm, 10km, 2x LC konektor, DDM

ML-S+31Dout-10
ML-S+31Dout-10 is a singlemode 10G SFP+ module with 1310nm wave length and 2 LC connectors for link at distance up to 10km. Module is "cisco compatible", so it is compatible with almost all active devices. The advantage of this product is higher frost resistance and its operating temperature is set... More information
To select 2 variants

Product description

ML-S+31Dout-10 is a singlemode 10G SFP+ module with 1310nm wave length and 2 LC connectors for link at distance up to 10km. Module is "cisco compatible", so it is compatible with almost all active devices. The advantage of this product is higher frost resistance and its operating temperature is set deep under frost point to -40 to 70°C. The module is ideal for installation in outdoor microwave devices.

Specifications

Optics

Format:SFP+
For cable type:Single Mode
Transmission speed:10 Gbps
Wavelength - Tx/Rx [nm]:1310
Distance [km]:10
Transfer type:2-fiber
Polishing type:UPC
Tx power [dBm]:-6 up to -1
Receiver sensitivity [dBm]:-12,6

Connectors and Interfaces

Optical Connectors:(2) LC

Physical characteristics

Operating temperature [°C]:-40 up to 85

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
