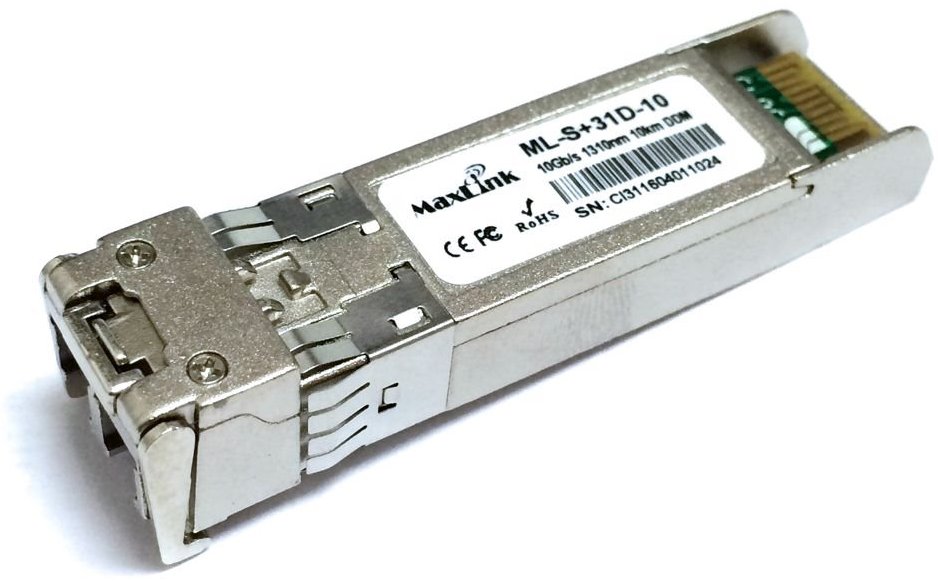

MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM

ML-S+31D-10
ML-S+31D-10 is a singlemode 10G SFP+ module with 1310nm wave length and 2 LC connectors for link at distance up to 10km. Module is "cisco compatible", so it is compatible with almost all active devices.... More information
To select 2 variants

Product description

ML-S+31D-10 is a singlemode 10G SFP+ module with 1310nm wave length and 2 LC connectors for link at distance up to 10km. Module is "cisco compatible", so it is compatible with almost all active devices.

Specifications

Optics

Format:SFP+
For cable type:Single Mode
Transmission speed:10 Gbps
Wavelength - Tx/Rx [nm]:1310
Distance [km]:10
Transfer type:2-fiber
Polishing type:UPC
Tx power [dBm]:-6 up to -1
Receiver sensitivity [dBm]:-12,6

Connectors and Interfaces

Optical Connectors:(2) LC

Physical characteristics

Operating temperature [°C]:-10 up to 70

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
