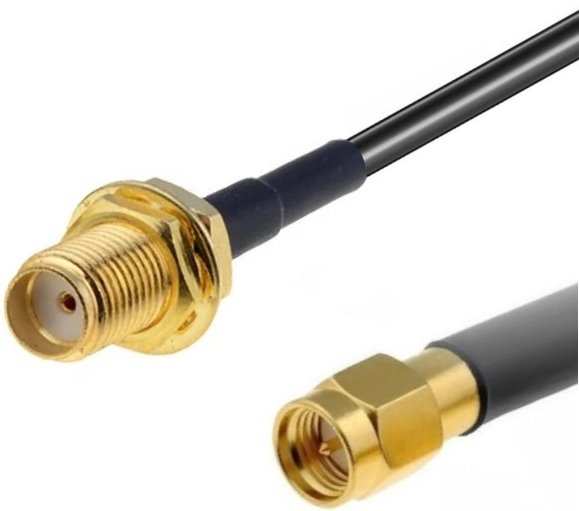

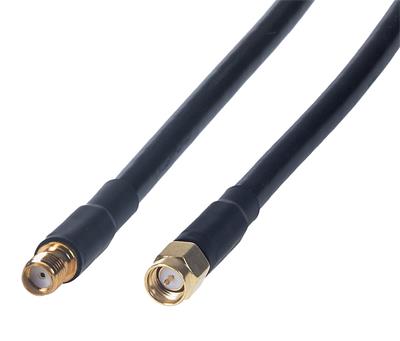

Pigtail RF240 8m - SMA female / SMA male

08-SF-SM-08
Professional high-frequency cable designed for the frequency range 0 to 6 GHz. The cable with a length of 8m is terminated with crimped connectors, SMA female on one side and SMA male on the other.Due to low attenuation and small bending radius , the cable between ISPs is often used in both 2.4 G... More information
To select 13 variants

Product description

Professional high-frequency cable designed for the frequency range 0 to 6 GHz. The cable with a length of 8m is terminated with crimped connectors, SMA female on one side and SMA male on the other.

Due to low attenuation and small bending radius , the cable between ISPs is often used in both 2.4 GHz and 5 GHz installations outdoors, including harsh climatic conditions to connect active and passive wireless components ( antenna / radio) or to extend an existing cable.

Specifications

Wireless features

Wireless frequency:0 up to 6 GHz

Connectors and Interfaces

Connectors:SMA female - SMA male, SMA male - SMA female

Physical characteristics

Cable type:RF240
Maximum loss - 2.4GHz [dB]:4
Maximum loss - 5GHz [dB]:6,2
Length [m]:8
