Pigtail RF240 2m - N male / SMA male

08-NM-SM-02
Professional high-frequency cable designed for the frequency range 0 to 6 GHz. The cable with a length of 2m is terminated with crimped connectors, N male on one side and SMA male on the other.Due to low attenuation and small bending radius , the cable between ISPs is often used in both 2.4 GHz a... More information
To select 13 variants

Product description

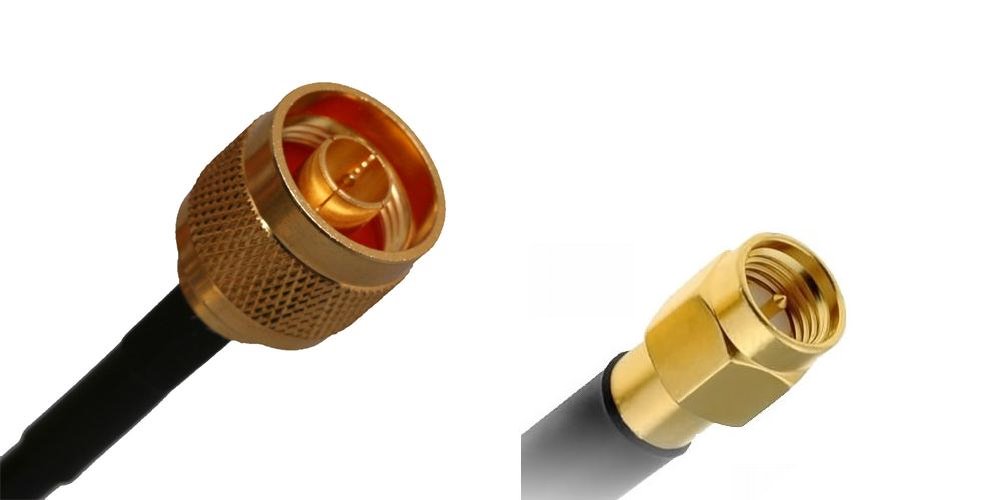

Professional high-frequency cable designed for the frequency range 0 to 6 GHz. The cable with a length of 2m is terminated with crimped connectors, N male on one side and SMA male on the other.

Due to low attenuation and small bending radius , the cable between ISPs is often used in both 2.4 GHz and 5 GHz installations outdoors, including harsh climatic conditions to connect active and passive wireless components ( antenna / radio) or to extend an existing cable.

Specifications

Wireless features

Wireless frequency:0 up to 6 GHz

Connectors and Interfaces

Connectors:N male - SMA male, SMA male - N male

Physical characteristics

Cable type:RF240
Maximum loss - 2.4GHz [dB]:1,5
Maximum loss - 5GHz [dB]:2,3
Length [m]:2
