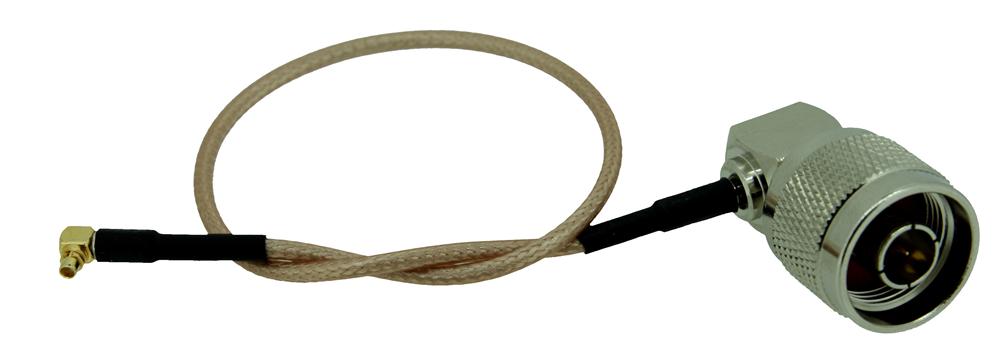

Pigtail 25cm RG316 MMCX - N male 90° angled

0/0

Pigtail 25cm RG316 MMCX - N male 90° angled

MMCX-NM90

Where to buy

Cable convertor from MMCX to N male, 25 cm long, designed for the frequency range from 0 to 6 GHz with attenuation max. 1.5 dB. The MMCX and N male connectors are rotated on 90 °. This is a quality convertor used, for example, for connecting to miniPCI cards, etc.... More information

All variants

Pigtail 25cm RG316 MMCX - N male 90° angledMMCX-NM90currently displayed productCable convertor from MMCX to N male, 25 cm long, designed for the frequency range from 0 to 6 GHz with attenuation max. 1.5 dB. The MMCX and N male connectors are rotated on 90 °. This is a quality c...

compare send a question

Send a question

E-mail

Text

Send

Download1

Product description

Cable convertor from MMCX to N male, 25 cm long, designed for the frequency range from 0 to 6 GHz with attenuation max. 1.5 dB. The MMCX and N male connectors are rotated on 90 °. This is a quality convertor used, for example, for connecting to miniPCI cards, etc.

Specifications

Wireless features

Wireless frequency:0 up to 6 GHz

Connectors and Interfaces

Connectors:N male - MMCX, MMCX - N male

Physical characteristics

Cable type:RG316

Connectors construction:Angled - Angled

Maximum loss - 5GHz [dB]:1,5

Maximum loss - 2.4GHz [dB]:

Length [m]:0,25

Download

Datasheet
