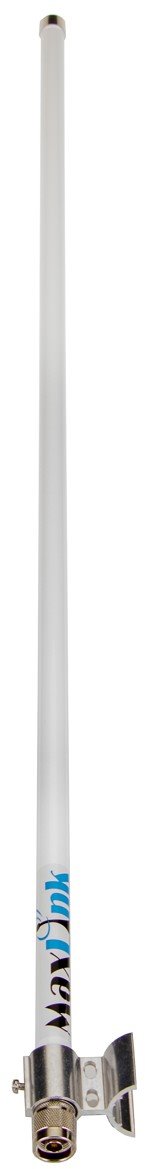

MaxLink omnidirectional antenna 12dBi, 2.4GHz

01-VS-M12
Omnidirectional antenna with a gain of 12 dBi, outdoor design, vertical polarization and use in the band 2.4 GHz (2400 ~ 2483 MHz). Ideal for use on shorter distances such as WiFi, Bluetooth, RFID, etc. The antenna is terminated with an N-male connector. Package includes Device itself Mast hol... More information
To select 2 variants

Product description

Omnidirectional antenna with a gain of 12 dBi, outdoor design, vertical polarization and use in the band 2.4 GHz (2400 ~ 2483 MHz). Ideal for use on shorter distances such as WiFi, Bluetooth, RFID, etc. The antenna is terminated with an N-male connector.

Package includes

  • Device itself

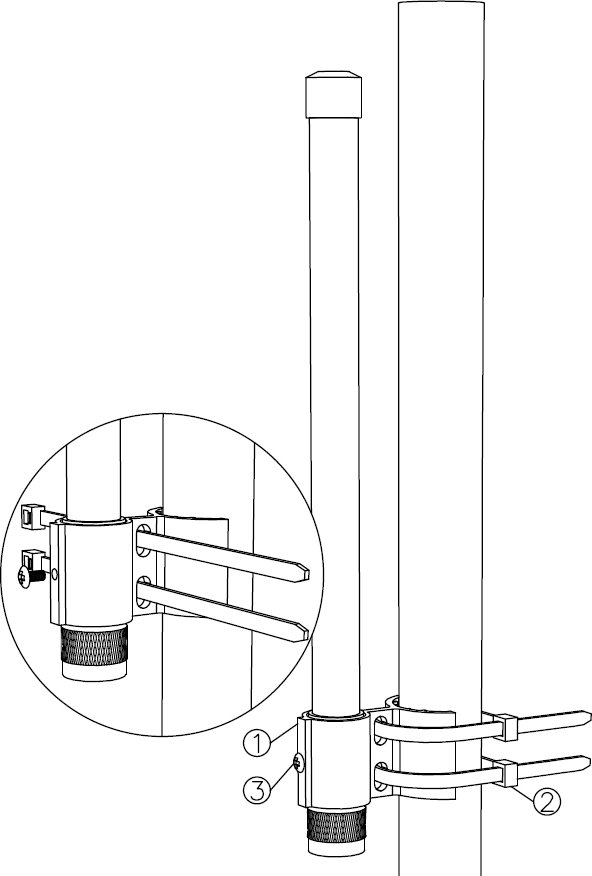

  • Mast holder
  • (2) Cable tie

Specifications

Wireless features

MIMO, SISO:1 x 1

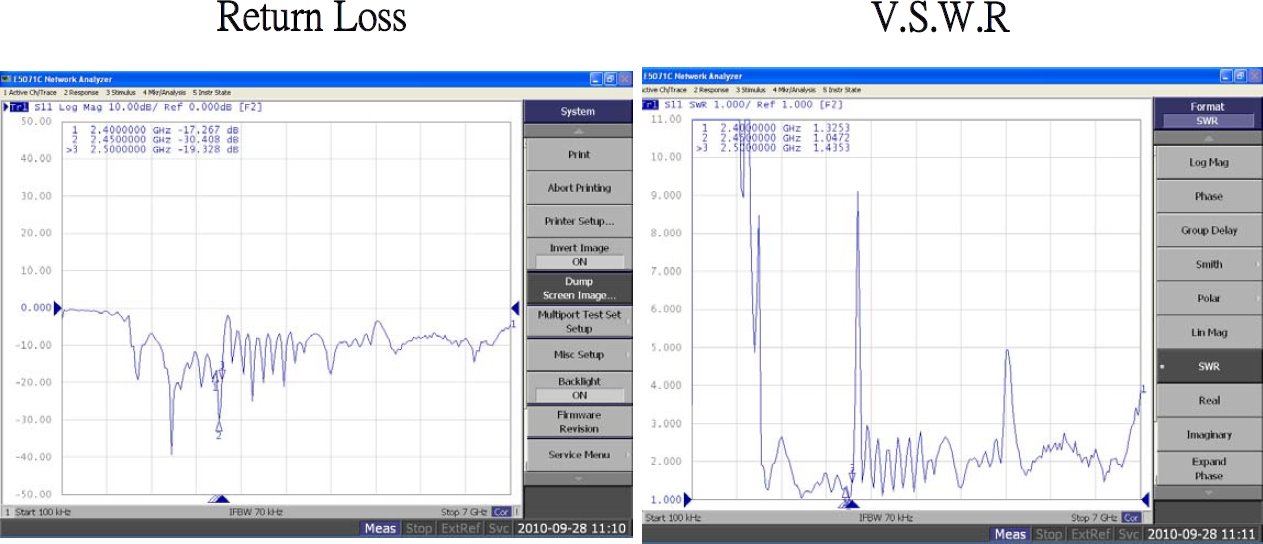

VSWR:< 1,5
Polarization:V
Wireless frequency:2.4 GHz

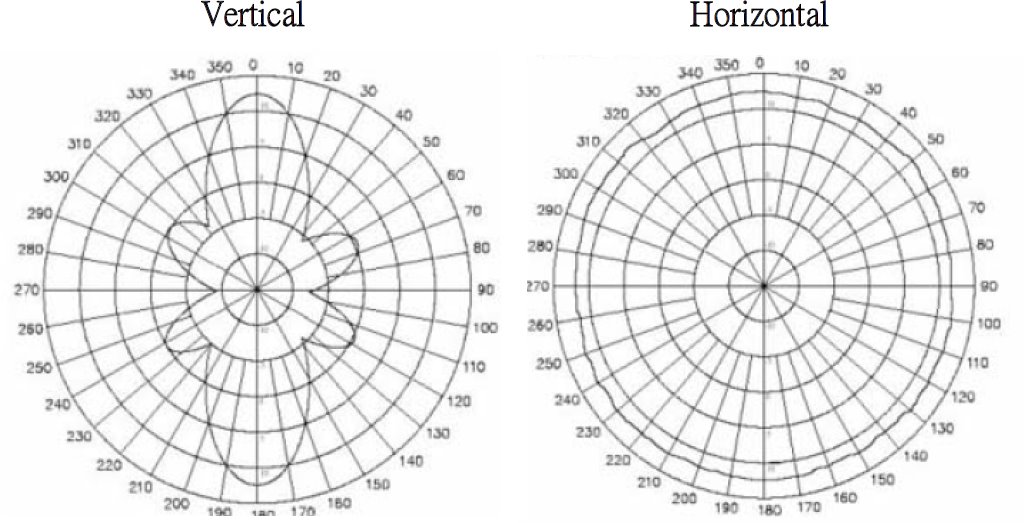

Elevation beam width (-6dB) [°]:8
Azimuth beam width (-6dB) [°]:360
Antenna type:Omnidirectional
Antenna gain [dBi]:12

Connectors and Interfaces

RF connectors:(1) N male

Physical characteristics

Wind load [km/h]:240
Purpose:Outdoor
Material:Fiberglass
Weight [kg]:0,25
Depth [mm]:19
Width [mm]:
Height [mm]:1100
