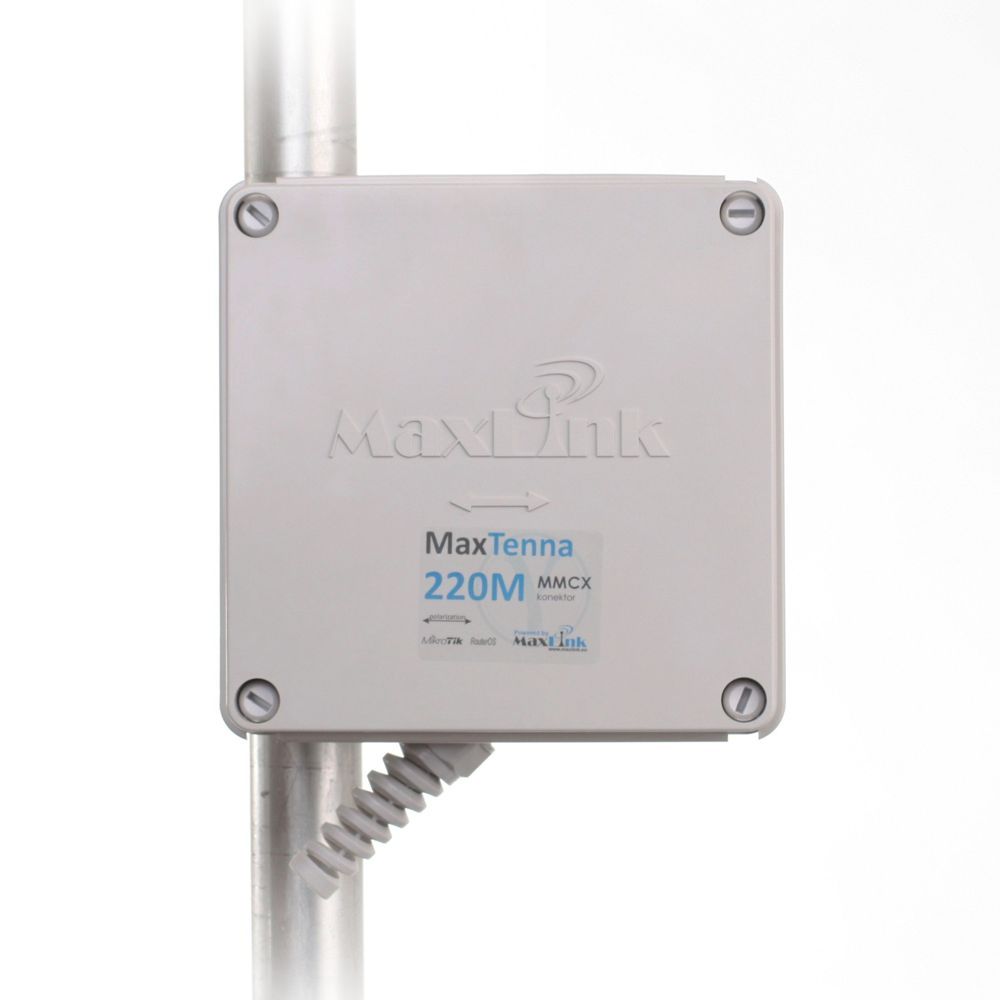

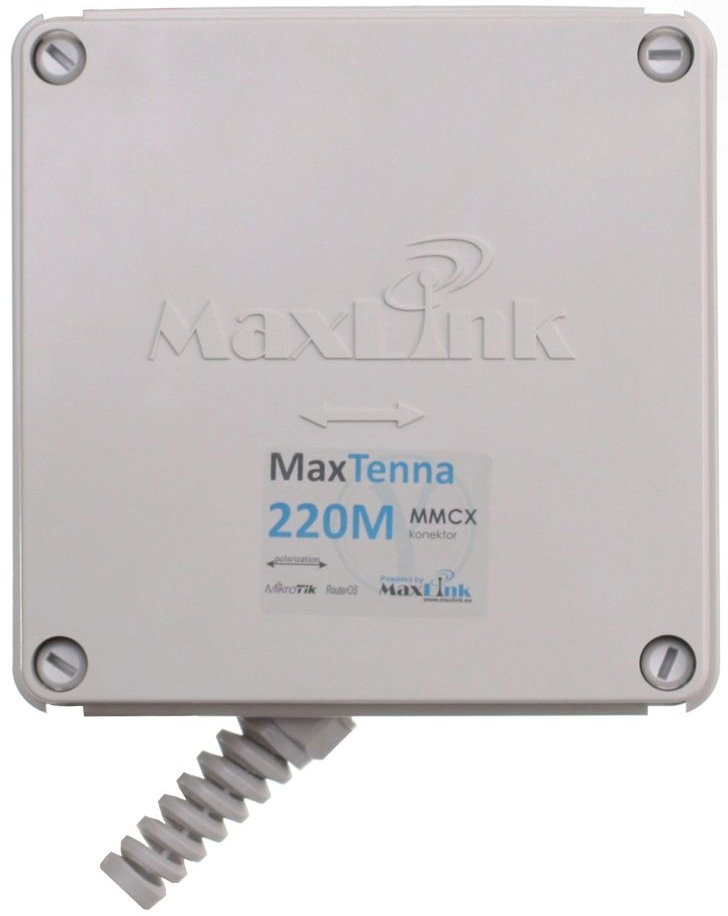

MaxLink MaxTenna 220M 20dBi 5GHz outdoor box with panel antenna

MT-220M
Outdoor box with a panel antenna. Antenna gain is 20 dBi. The heart of the antenna is made of PCB GoldFlash antenna. The box is made out of a high quality UV stable ABS plastic. Inside the box are mounts for MikroTik RB411, RB711 or UBNT WispStation 5.Package includes shielded waterproof RJ45 conne... More information

Product description

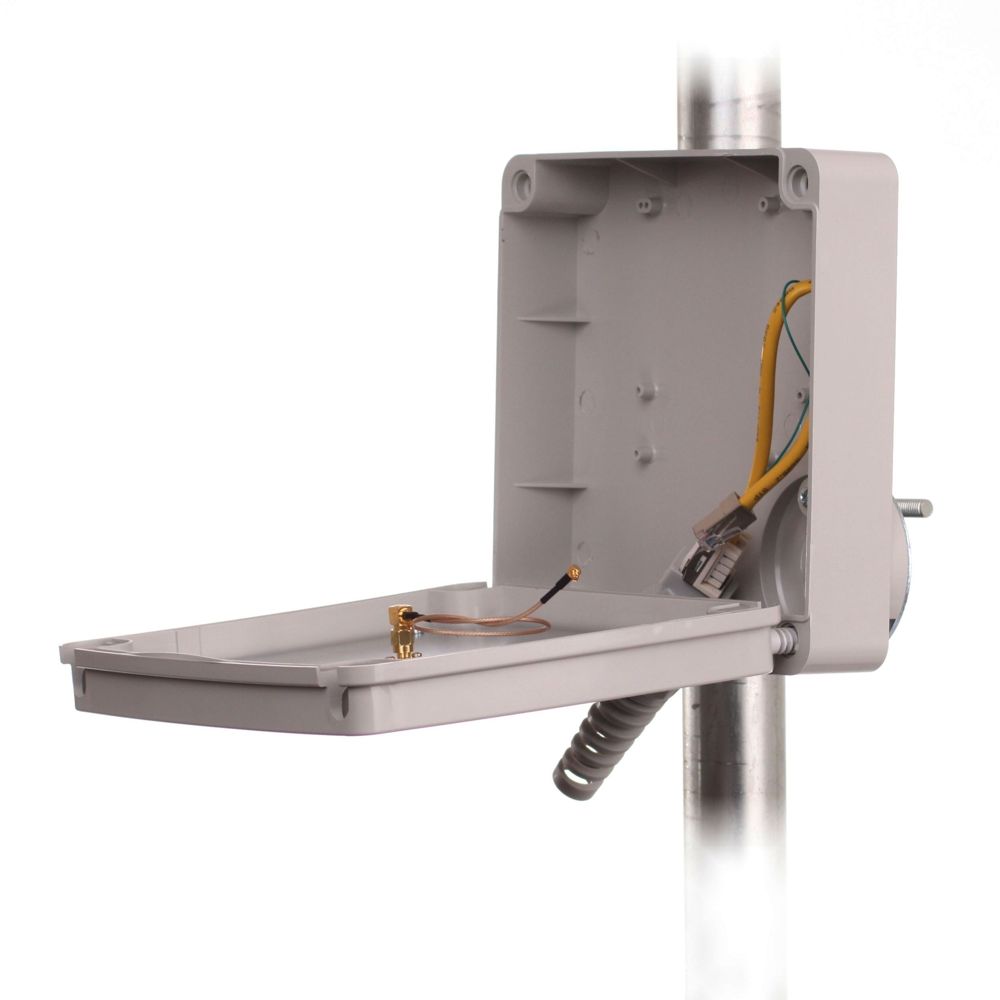

Outdoor box with a panel antenna. Antenna gain is 20 dBi. The heart of the antenna is made of PCB GoldFlash antenna. The box is made out of a high quality UV stable ABS plastic. Inside the box are mounts for MikroTik RB411, RB711 or UBNT WispStation 5.

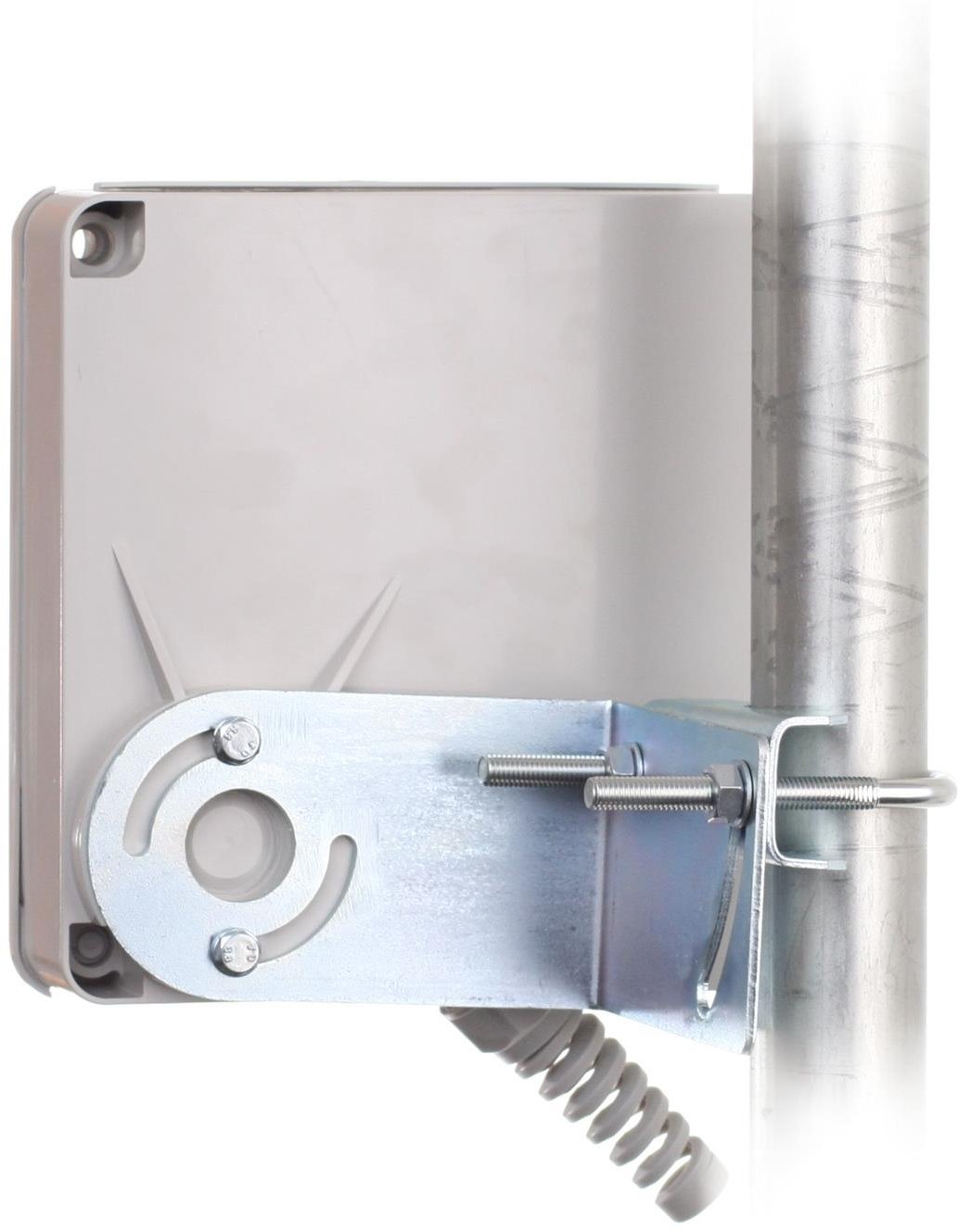

Package includes shielded waterproof RJ45 connector which allows connecting LAN cable without opening the box. Mount is made of the 2mm thick galvanized sheet metal for maximum stiffness. At the same time it allows very easy change of polarization by loosening two screws and pointing the antenna in range of 45° vertically.

Specifications

Wireless features

MIMO, SISO:1 x 1
Polarization:V or H
VSWR:< 1,5
F/B ratio [dB]:25
Wireless frequency:5 GHz
Elevation beam width (-6dB) [°]:20
Azimuth beam width (-6dB) [°]:
Antenna type:Directional
Antenna gain [dBi]:20

Connectors and Interfaces

RF connectors:(1) MMCX

Physical characteristics

Antenna design:Panel
Place for indoor unit:Yes
Designed for mast diameter [mm]:28 up to 66
Purpose:Outdoor
Material:UV stabilized ABS plastic
Weight [kg]:0,3
Depth [mm]:63
Width [mm]:187
Height [mm]:
