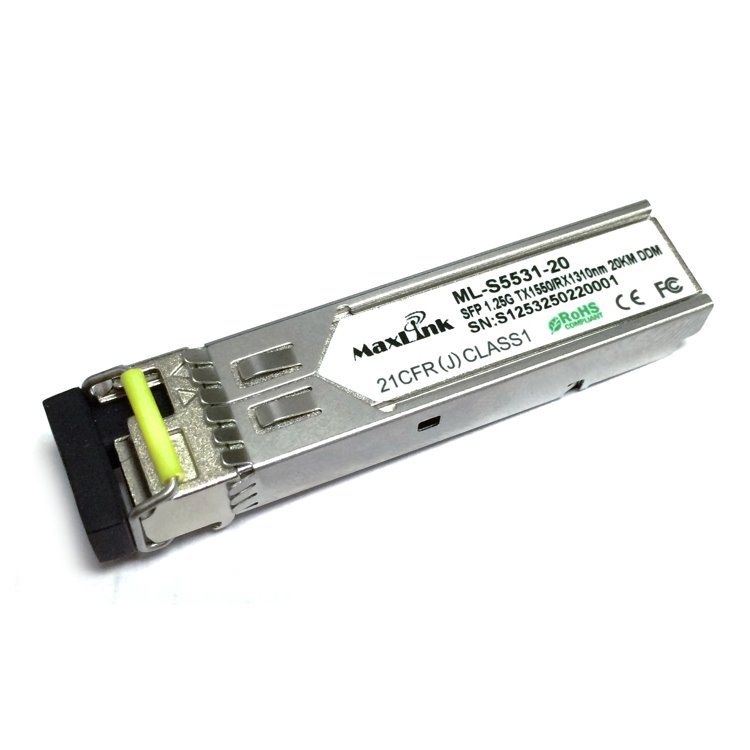

MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDM

ML-S5531-20
WDM SFP modules use 1 optical fiber for two-way connection, so you are able to double capacity of your optical cable without changing the cable. SFP module supports DDM - digital diagnostics monitoring.Modules are compatible with all MikroTik products and with others marked as "Cisco compatible".Wa... More information
To select 2 variants

Product description

WDM SFP modules use 1 optical fiber for two-way connection, so you are able to double capacity of your optical cable without changing the cable. SFP module supports DDM - digital diagnostics monitoring.

Modules are compatible with all MikroTik products and with others marked as "Cisco compatible".

Warning: For complete link you are supposed to buy ML-S3155-20 too, see related products.

Specifications

Optics

Format:SFP
For cable type:Single Mode
Transmission speed:1 Gbps
Wavelength - Tx/Rx [nm]:1550 / 1310
Distance [km]:20
Transfer type:WDM
Polishing type:UPC
Tx power [dBm]:-9 up to -3
Receiver sensitivity [dBm]:-23

Connectors and Interfaces

Optical Connectors:(1) LC

Physical characteristics

Operating temperature [°C]:-10 up to 70

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
