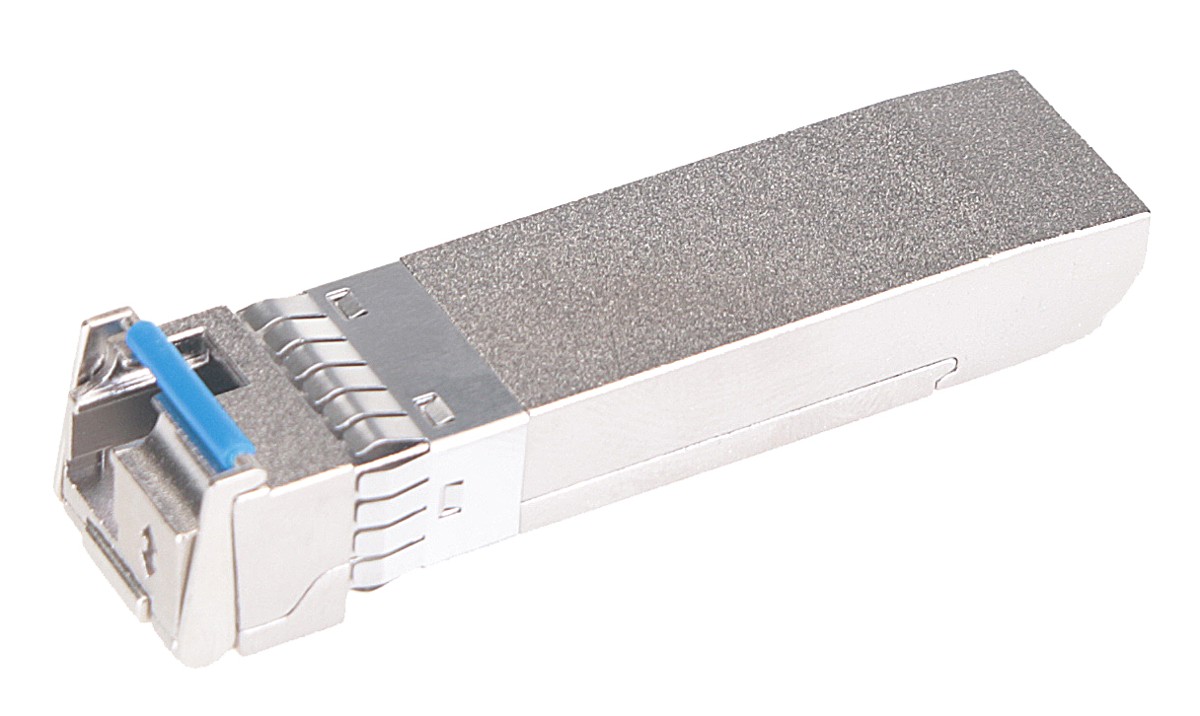

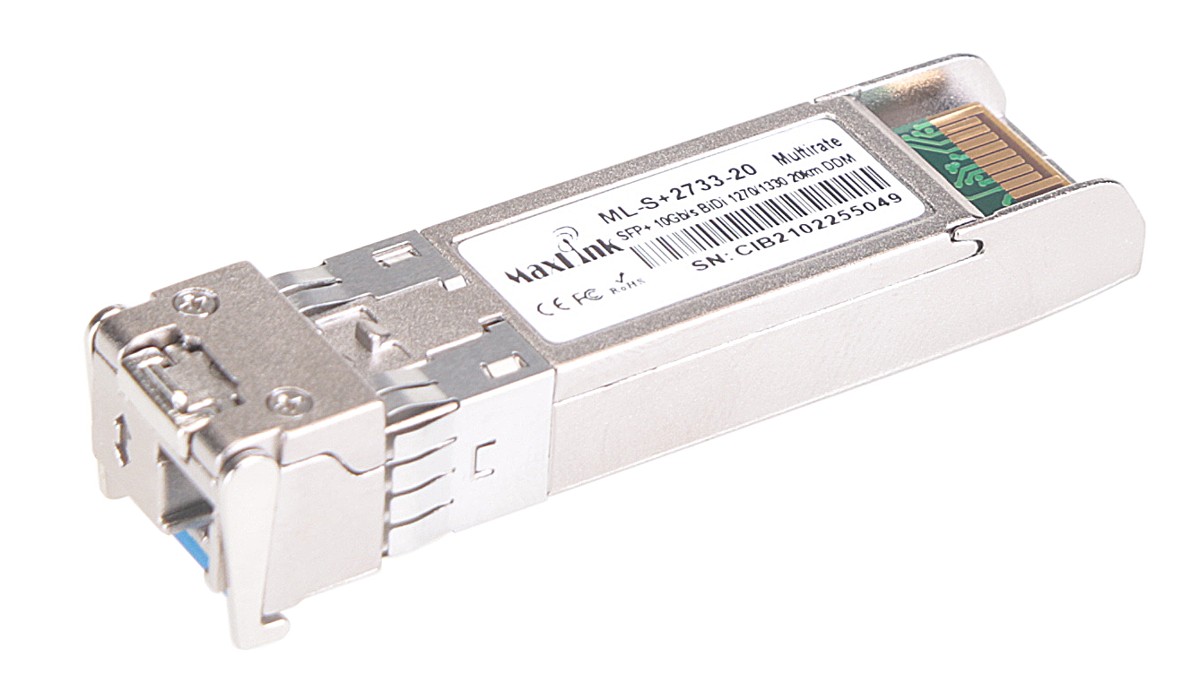

MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 20km, 1x LC connector, DDM

ML-S+2733-20
ML-S+2733-20 is singlemode 10G SFP+ module with 1 LC connector for link at distance up to 20km. It uses 1 optical fiber, Tx/Rx wave length is 1270/1330nm. Module is "cisco compatible", so it is compatible with almost all active devices.... More information
To select 2 variants

Product description

ML-S+2733-20 is singlemode 10G SFP+ module with 1 LC connector for link at distance up to 20km. It uses 1 optical fiber, Tx/Rx wave length is 1270/1330nm. Module is "cisco compatible", so it is compatible with almost all active devices.

Specifications

Optics

Format:SFP+
For cable type:Single Mode
Transmission speed:10 Gbps
Wavelength - Tx/Rx [nm]:1270 / 1330
Distance [km]:20
Transfer type:WDM
Polishing type:UPC
Tx power [dBm]:-2 up to 3
Receiver sensitivity [dBm]:-15

Connectors and Interfaces

Optical Connectors:(1) LC

Physical characteristics

Operating temperature [°C]:-10 up to 70

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
