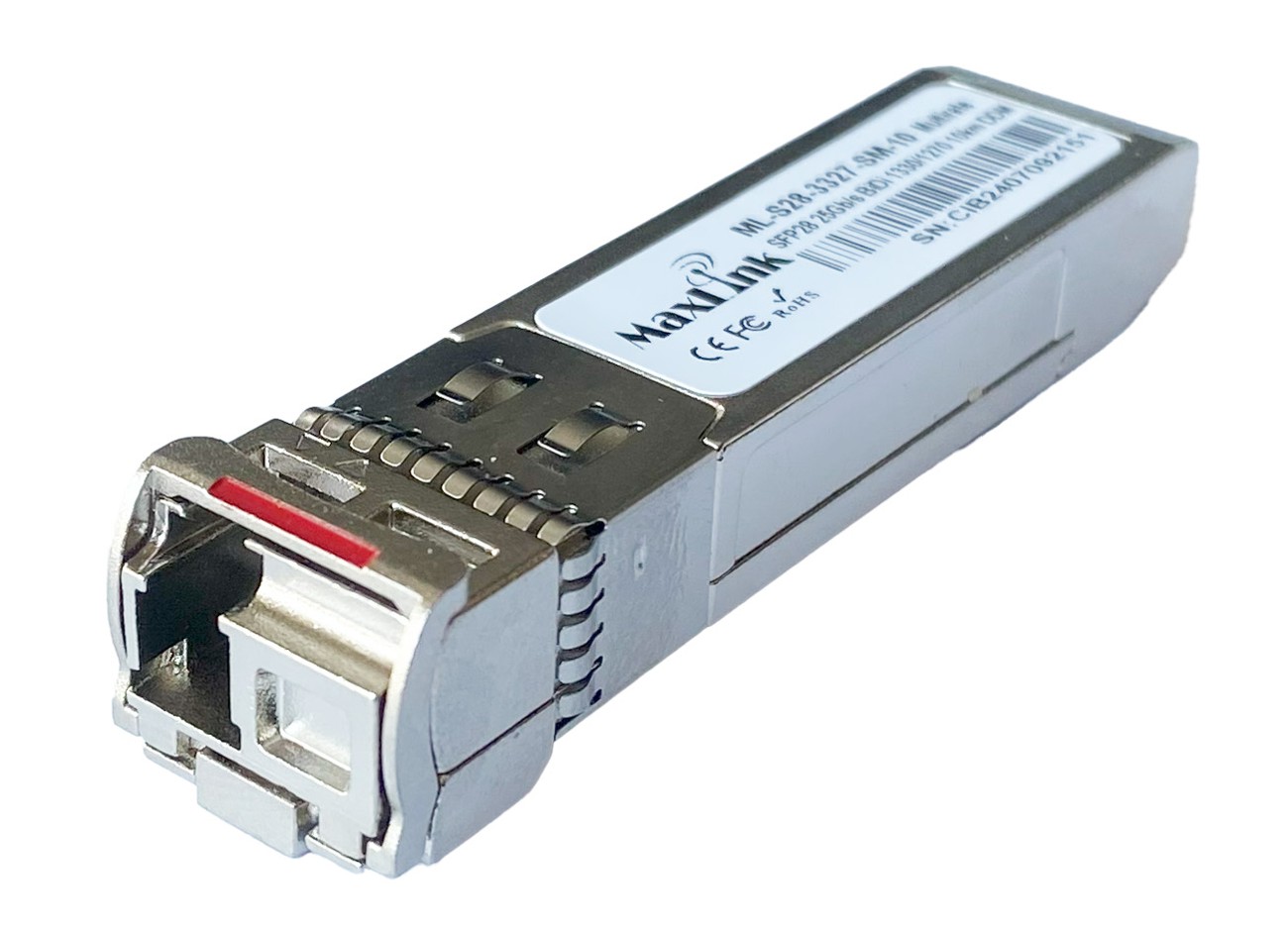

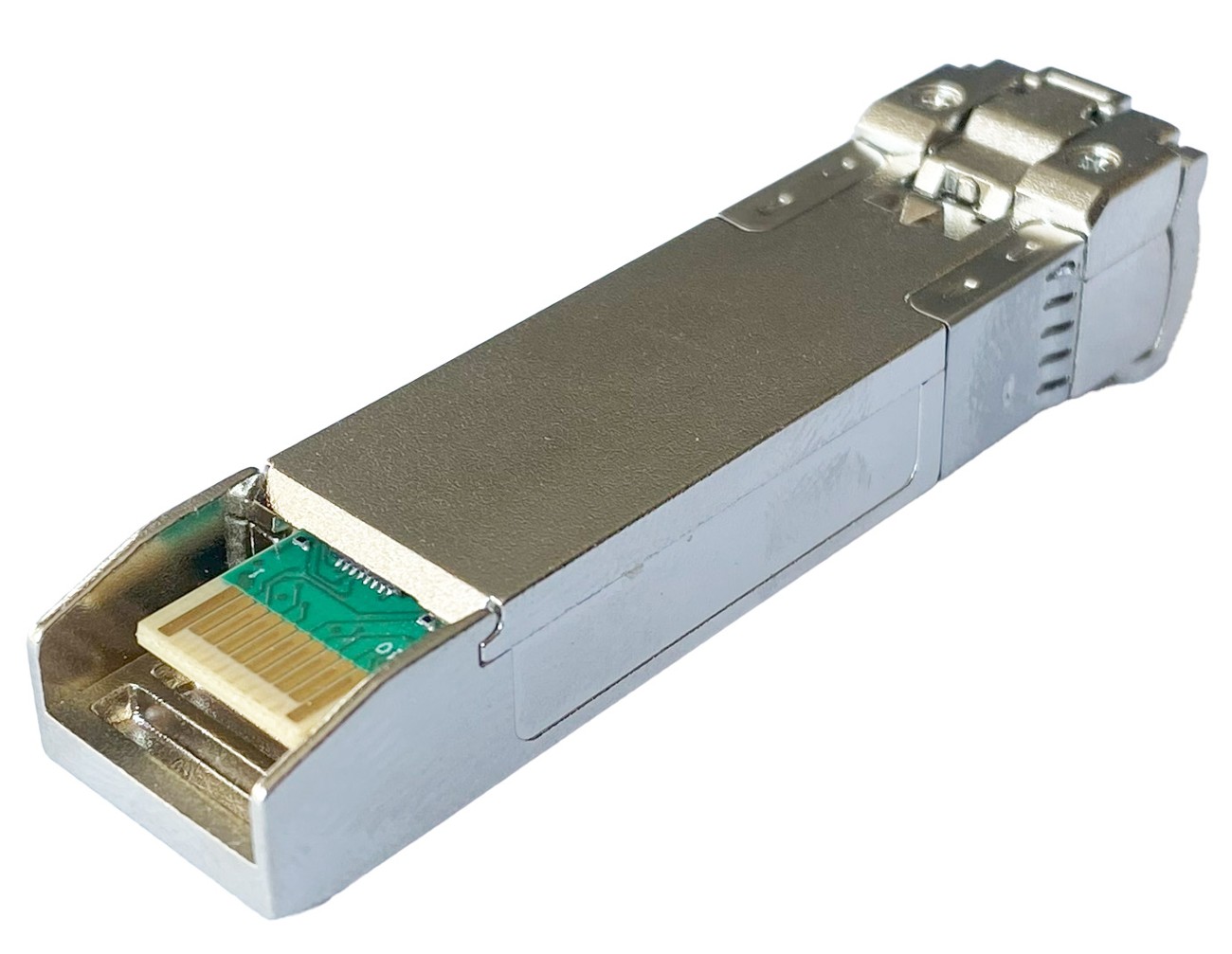

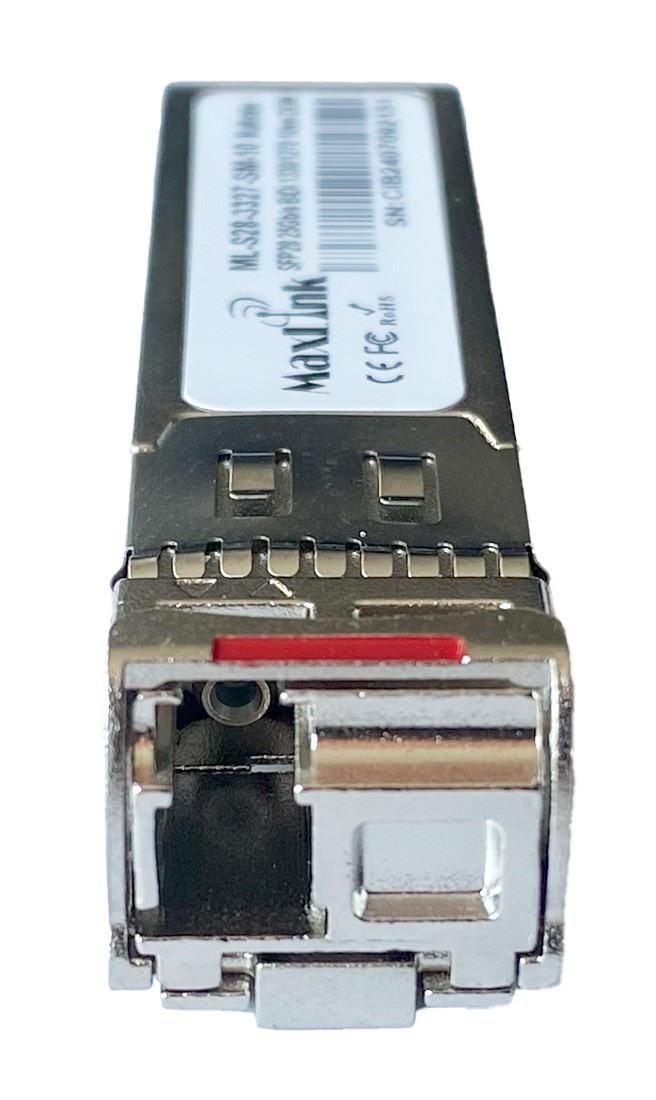

MaxLink 25G SFP28 optical modul, 1330-1270nm, SM, BIDI, 10km, 1x LC connectors

ML-S28-3327-SM-10
ML-S28-3327-SM-10 is a single-mode 25G WDM SFP28 module with wavelengths Tx1330/Rx1270nm, one LC connector and a maximum distance of 10km. Module supports DDM - digital diagnostics monitoring..WDM modules use only one optical fiber for bidirectional connection, thus allowing to double the connectio... More information

Product description

ML-S28-3327-SM-10 is a single-mode 25G WDM SFP28 module with wavelengths Tx1330/Rx1270nm, one LC connector and a maximum distance of 10km. Module supports DDM - digital diagnostics monitoring..

WDM modules use only one optical fiber for bidirectional connection, thus allowing to double the connection density without the need to replace the optical path. The module is compatible with all active elements from MikroTik and also with devices from other manufacturers "Cisco compatible". The LC connector in the module has UPC polishing.

Attention: To achieve a fully functional connection with this module, it is necessary to purchase ML-S28-2733-SM-10, see related products.

Specifications

Optics

Format:SFP28
For cable type:Single Mode
Transmission speed:25 Gbps
Wavelength - Tx/Rx [nm]:1330 / 1270
Distance [km]:10
Transfer type:WDM
Polishing type:UPC
Tx power [dBm]:-5 up to 2
Receiver sensitivity [dBm]:-12

Connectors and Interfaces

Optical Connectors:(1) LC

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
