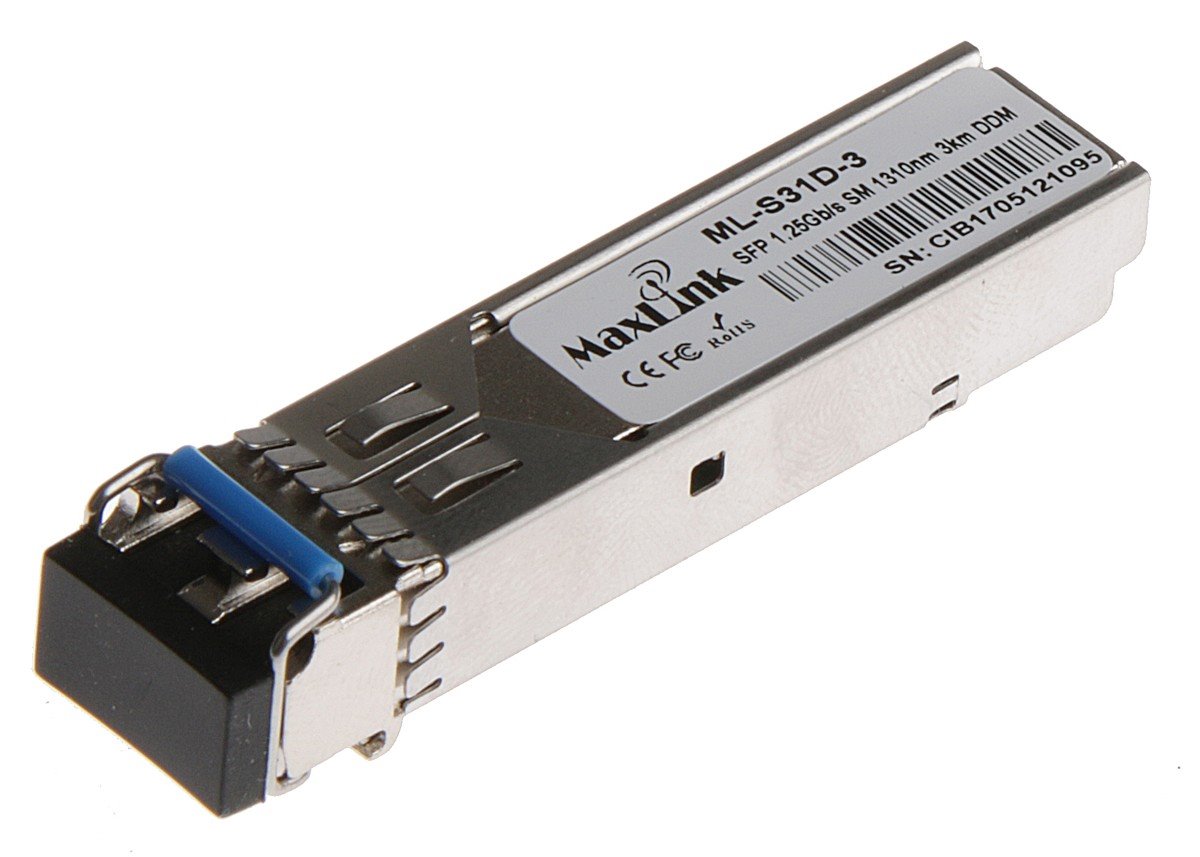

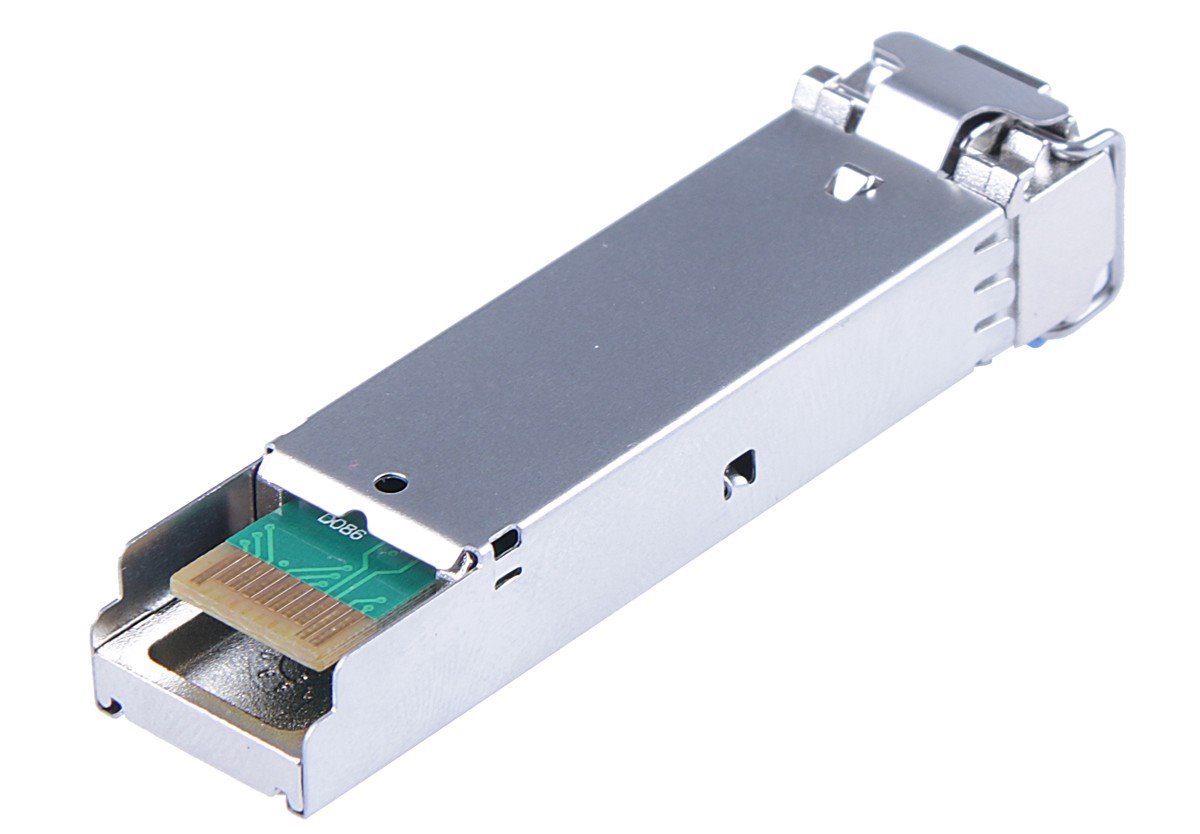

MaxLink 1.25G SFP optical HP module, SM, 1310nm, 3km, 2x LC connector, DDM, HP comp.

ML-S31D-3-HP
ML-S31D-3-HP is 1.25G SFP module with wavelength of 1310nm and 2 LC connectors for max. length of 3km - singlemode optic fiber. SFP module supports DDM.LC connectors in SFP has grinding of ferule type UPC.HPE compatibilityThis module is suitable for HP switches with Pro-Vision (ProCurve) and ArubaO... More information

Product description

ML-S31D-3-HP is 1.25G SFP module with wavelength of 1310nm and 2 LC connectors for max. length of 3km - singlemode optic fiber. SFP module supports DDM.

LC connectors in SFP has grinding of ferule type UPC.

HPE compatibility

This module is suitable for HP switches with Pro-Vision (ProCurve) and ArubaOS software.

Specifications

Optics

Format:SFP
For cable type:Single Mode
Transmission speed:1 Gbps
Wavelength - Tx/Rx [nm]:1310
Distance [km]:3
Transfer type:2-fiber
Polishing type:UPC
Tx power [dBm]:-9 up to -3
Receiver sensitivity [dBm]:-24

Connectors and Interfaces

Optical Connectors:(2) LC

Physical characteristics

Operating temperature [°C]:-10 up to 70

General

Compatibility:HP

Software

DDMI - diagnostics:Yes
