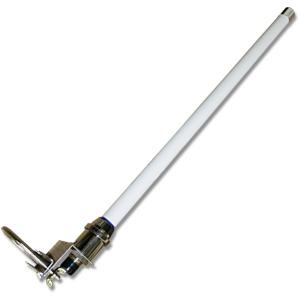

MaxLink omnidirectional antenna 8dBi 2,4GHz

01-VS-M08
Omnidirectional antenna with a gain of 8 dBi and vertical polarization for the 2.4GHz band. Ideal use for the distances up to 1 km. The antenna has N-Female connector.... More information

Product description

Omnidirectional antenna with a gain of 8 dBi and vertical polarization for the 2.4GHz band. Ideal use for the distances up to 1 km. The antenna has N-Female connector.

Specifications

Wireless features

MIMO, SISO:1 x 1

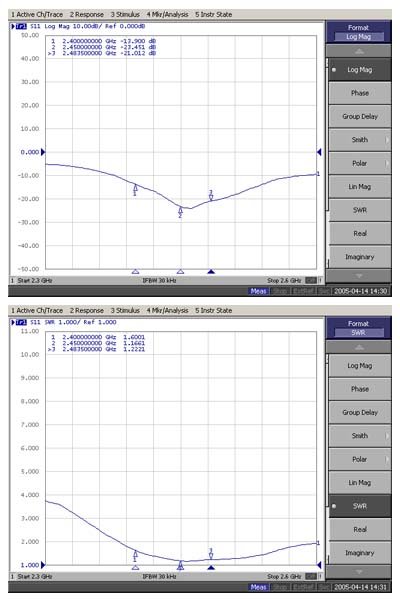

VSWR:< 1,7
Wireless frequency:2.4 GHz

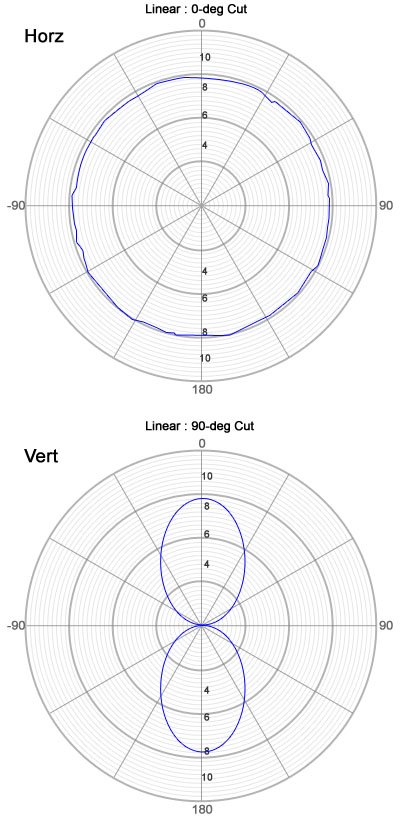

Elevation beam width (-6dB) [°]:7
Azimuth beam width (-6dB) [°]:360
Antenna type:Omnidirectional
Antenna gain [dBi]:8

Connectors and Interfaces

RF connectors:(1) N female

Physical characteristics

Designed for mast diameter [mm]:28 up to 50
Purpose:Outdoor
Material:Fiberglass
Weight [kg]:0,4
Depth [mm]:8
Width [mm]:15
Height [mm]:430

Download

Datasheet
