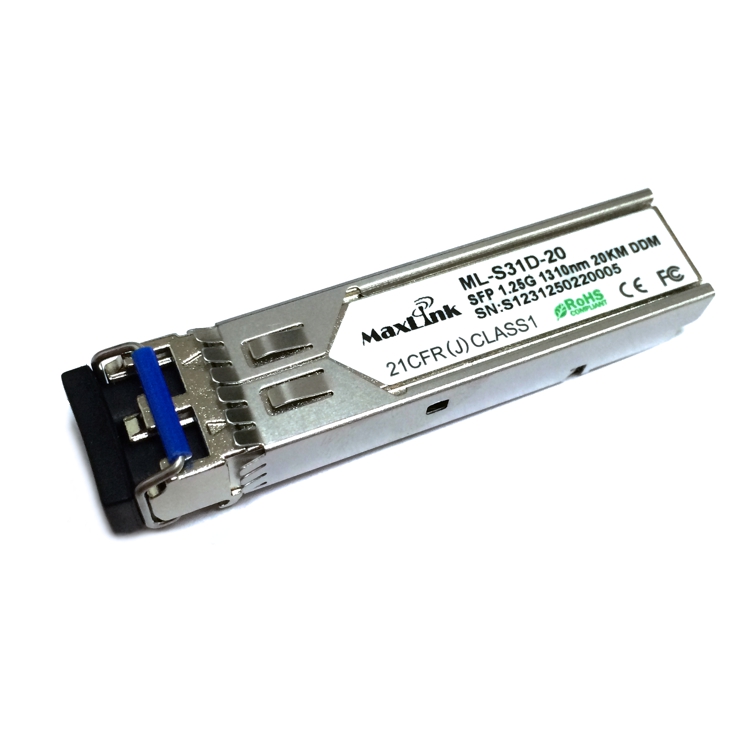

MaxLink 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC connector, DDM

ML-S31D-20
ML-S31D-20 is 1.25G SFP module with wave length 1310nm, 2 LC connectors for maximal distance 20km with singlemode fiber. SFP module supports DDM - digital diagnostics monitoring.The LC connectors in the SFP module have UPC type grinding.Modules are compatible with all MikroTik products and with oth... More information
To select 3 variants

Product description

ML-S31D-20 is 1.25G SFP module with wave length 1310nm, 2 LC connectors for maximal distance 20km with singlemode fiber. SFP module supports DDM - digital diagnostics monitoring.

The LC connectors in the SFP module have UPC type grinding.

Modules are compatible with all MikroTik products and with others manufacturers.

Specifications

Optics

Format:SFP
For cable type:Single Mode
Transmission speed:1 Gbps
Wavelength - Tx/Rx [nm]:1310
Distance [km]:20
Transfer type:2-fiber
Polishing type:UPC
Tx power [dBm]:-9 up to -3
Receiver sensitivity [dBm]:-24

Connectors and Interfaces

Optical Connectors:(2) LC

Physical characteristics

Operating temperature [°C]:0 up to 70

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
