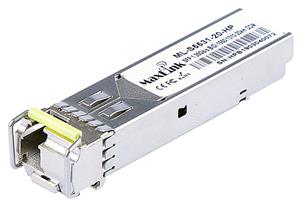

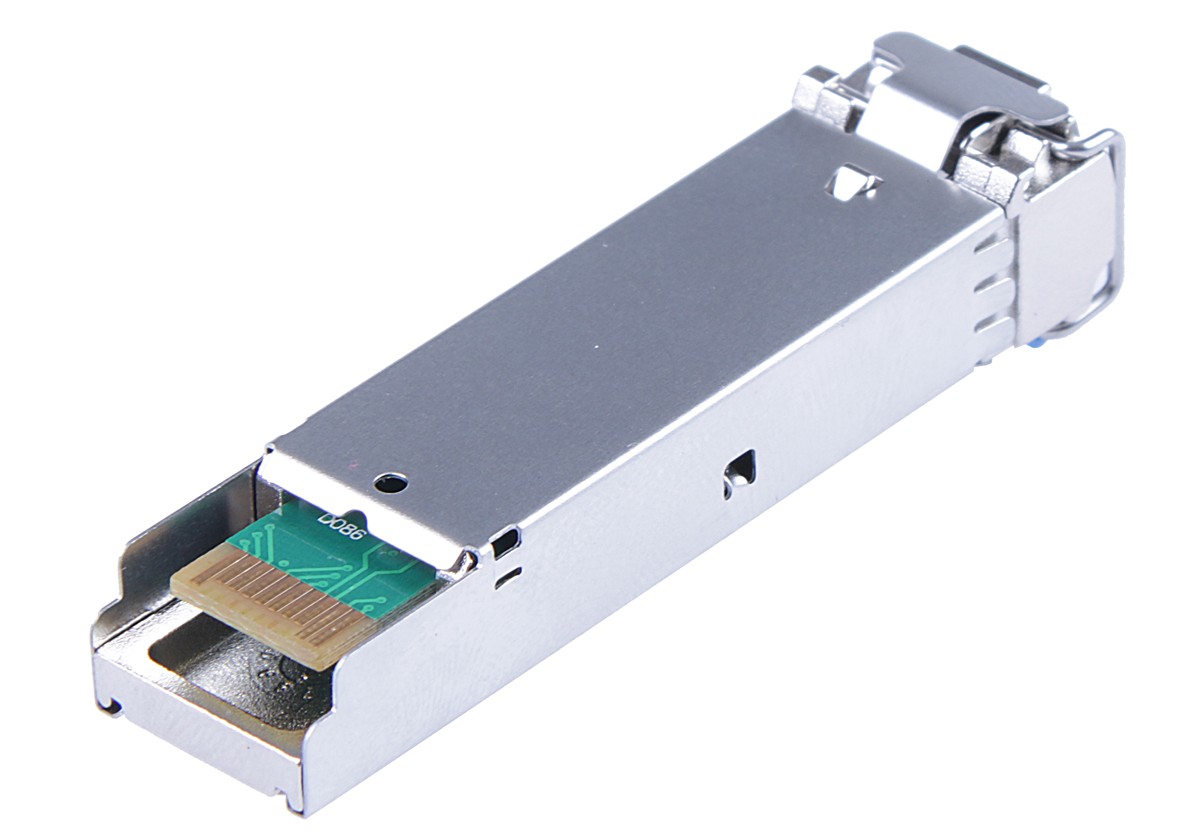

MaxLink 1.25G SFP optical HP module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDM, HP comp.

ML-S5531-20-HP
WDM SFP modules use only one optical fiber for bidirectional linking, allowing you to double the link density without replacing the optical path. SFP module supports monitoring - DDM function. LC connectors in SFP module have UPC type grinding.HPE compatibilityThis module is suitable for HP switche... More information

Product description

WDM SFP modules use only one optical fiber for bidirectional linking, allowing you to double the link density without replacing the optical path. SFP module supports monitoring - DDM function. LC connectors in SFP module have UPC type grinding.

HPE compatibility

This module is suitable for HP switches with Pro-Vision (ProCurve) and ArubaOS software.

Attention:, for a fully functional connection, ML-S3155-20-HP is required for this module, see related products.

Specifications

Optics

Format:SFP
For cable type:Single Mode
Transmission speed:1 Gbps
Wavelength - Tx/Rx [nm]:1550 / 1310
Distance [km]:20
Transfer type:WDM
Polishing type:UPC
Tx power [dBm]:-9 up to -3
Receiver sensitivity [dBm]:-23

Connectors and Interfaces

Optical Connectors:(1) LC

Physical characteristics

Operating temperature [°C]:-10 up to 70

General

Compatibility:HP

Software

DDMI - diagnostics:Yes
